V Power Chuck

3-jaw wedge type non through-hole
power chuck (adapter excluded)
  • High performance :
    Similar high performance with N series.
  • Chuck mounting screws :
    Metric or UNC socket head cap screws are supplied for installing the chuck to the spindle.
Plunger
Stroke
(mm)
Jaw stroke
(In Dia.)
(mm)
Max. Pull
Force
(kgf)
Max.
Gripping
Force
(kgf)
Max.
Operating
Pressure
(kgf / cm²)
Max.
Speed
(r.p.m.)
Weight
(kg)
Moment Of
Inertia
I
(kg.m²)
Matching
Cylinder
Matching
Hard Jaw
Matching
Soft Jaw
Gripping
O.D. Range
(mm)
SPEC Part Number Price Each
20 9.2 1835 5353 26.5 5200 12.7 0.048 MS105C HJ06 HC06 Ø18-Ø165 V-206
Call or Email
21 9.7 2549 7648 25.5 4500 23.8 0.137 MS125C HJ08 HC08 Ø26-Ø210 V-208
Call or Email
25 8.8 2957 11013 28.6 4000 36.4 0.3 MS125C HJ10 HC10 Ø26-Ø254 V-210
Call or Email
30 10.5 4181 15907 27.5 3300 62.3 0.78 MS150C HJ12-1 HC12-1 Ø26-Ø304 V-212
Call or Email
35 16 8362 25391 32.6 3000 106 1.94 MS200C HJ15-1 HC15-1 Ø68-Ø381 V-215
Call or Email
35 16 8362 25391 32.6 2700 122 3.09 MS200C HJ15-1 HC15-1 Ø98-Ø450 V-218
Call or Email

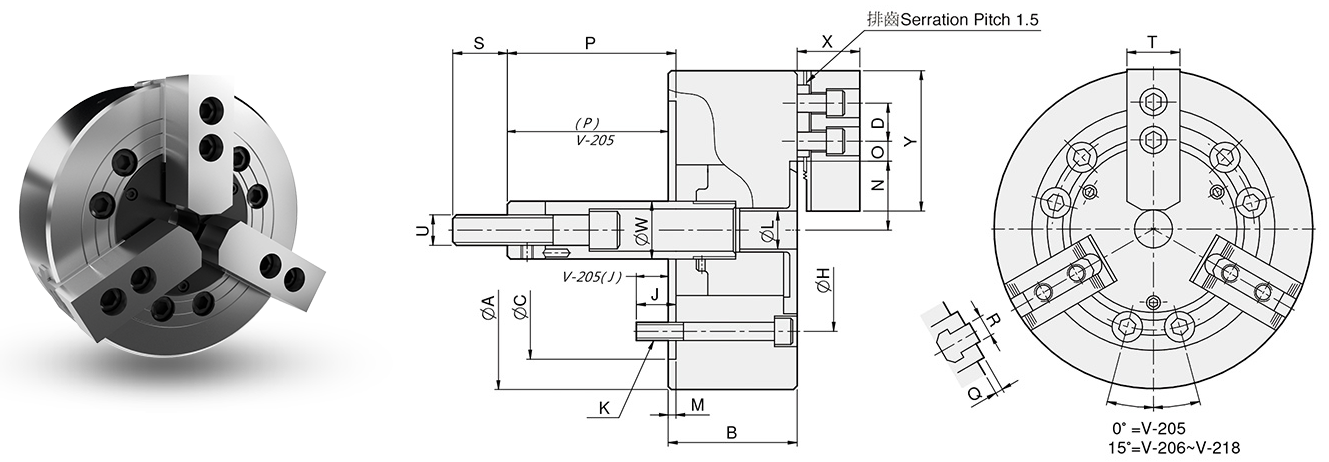

A B C D H J K L M N
max.
O
max.
O
min.
P
max.
P
min.
Q R S T U W X Y DIM Part Number Price Each
165 74 140 20 104.78 14 6-M10x70 21 5 38.7 15.25 7.75 104.6 84.6 4 12 36 31 M16x2.0 34 39 73 V-206 Call or Email
210 85 170 25 133.35 20 6-M12x85 25 5 46.75 22.25 8.75 132 111 5 14 36 35 M20x2.5 38 41 95 V-208 Call or Email
254 89 220 30 171.45 18 6-M16x85 34 5 51.1 30.75 9.75 158 133 5 16 36 40 M20x2.5 45 46 110 V-210 Call or Email
304 106 220 30 171.45 23 6-M16x105 34 6 61 48.75 9.75 163 133 5 18 36 50 M20x2.5 50 54 130 V-212 Call or Email
381 114 300 43 235 29 6-M20x115 --- 6 77.5 49.75 21.25 104 69 2 25.5 55 62 M30x3.5 60 63 165 V-215 Call or Email
450 114 300 43 235 29 6-M20x115 --- 6 108 49.75 21.25 92 57 2 25.5 55 62 M30x3.5 60 63 165 V-218 Call or Email
