Type L Bushing - (Inch OD - Inch ID)

Toolholder Bushing Type “L”
All “L” style bushings are shoulder-less, have set screw clearance holes opposite the slot and have a split with a flat on the O.D.
“L” Style Bushings are used to adapt drills, boring bars and shank tools to any size in a standard turret or toolholder. CNC has full selection and assortment of these bushings. We can supply these to you, minimizing production downtime – allowing you to increase production.

Type L Bushings Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID
Special Bore Sizes Available. Call for Quote
Prices are pulled from our database in real time. Press Add button to see product price.
Bushing
OD
Overall
Length
Length
Dimensions
Hole
Size
No. of
Holes
Bushing
ID
Part Number

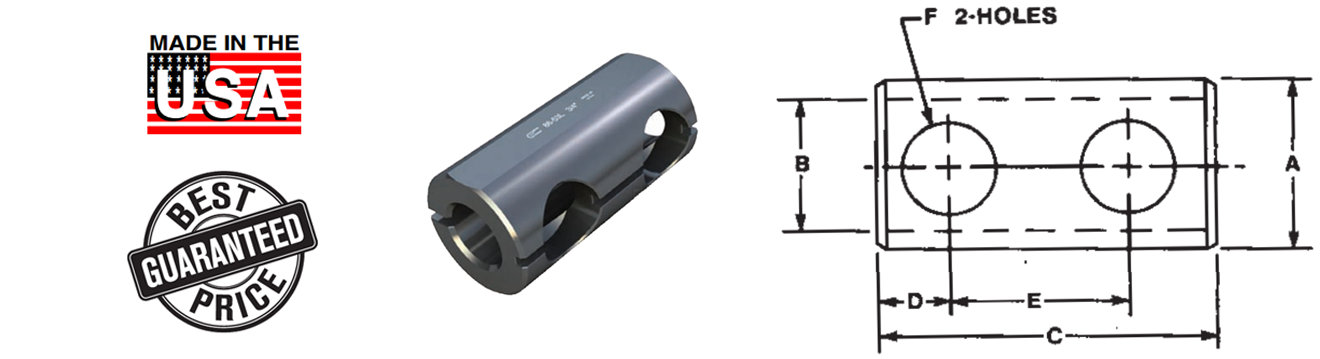

A C D E F B
1-1/2" 3" 3/4" 1-5/8" 7/8" 2 3/8" CNC 86-53L 3/8"
1/2" CNC 86-53L 1/2"
5/8" CNC 86-53L 5/8"
3/4" CNC 86-53L 3/4"
1" CNC 86-53L 1"
1-1/4" CNC 86-53L 1-1/4"
1-3/4" 3" 3/4" 1-5/8" 7/8" 2 1/2" CNC 86-54L 1/2"
5/8" CNC 86-54L 5/8"
3/4" CNC 86-54L 3/4"
1" CNC 86-54L 1"
1-1/4" CNC 86-54L 1-1/4"
1-1/2" CNC 86-54L 1-1/2"
2-1/4" 4-1/2" 7/8" 2" 1" 2 5/8" CNC 86-56L 5/8"
3/4" CNC 86-56L 3/4"
1" CNC 86-56L 1"
1-1/4" CNC 86-56L 1-1/4"
1-1/2" CNC 86-56L 1-1/2"
1-3/4" CNC 86-56L 1-3/4"
2" CNC 86-56L 2"
2-3/4" 4-1/2" 7/8" 2" 1" 2 3/4" CNC 86-57L 3/4"
1" CNC 86-57L 1"
1-1/4" CNC 86-57L 1-1/4"
1-1/2" CNC 86-57L 1-1/2"
1-3/4" CNC 86-57L 1-3/4"
2" CNC 86-57L 2"
2-1/4" CNC 86-57L 2-1/4"
