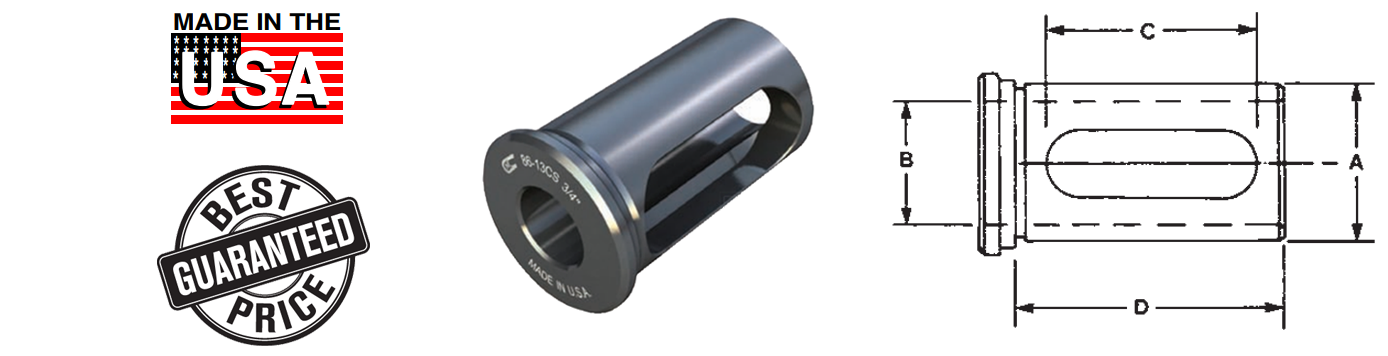

Type CS Bushing (Short Series) - (Inch OD - Metric ID)
![](http://exacttoolandsupply.com/cdn/shop/t/8/assets/csbushings.png?v=41603627744496101821583169024)
Introducing the “all new” CNC Type CS Bushing designed for universal use on all CNC Turning machines. The Bushings are hardened & precision ground concentric.
Type CS Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Metric OD – Inch ID
- Metric OD – Metric ID
Bushing OD |
Length of Slot |
Length Under Head |
Bushing ID |
Part Number |
A | C | D | B | |
3/4" | 1-1/8" | 1-1/2" | 6mm | CNC 86-10CS 6mm |
8mm | CNC 86-10CS 8mm | |||
10mm | CNC 86-10CS 10mm | |||
12mm | CNC 86-10CS 12mm | |||
1" | 1-3/8" | 1-3/4" | 8mm | CNC 86-11CS 8mm |
10mm | CNC 86-11CS 10mm | |||
12mm | CNC 86-11CS 12mm | |||
16mm | CNC 86-11CS 16mm | |||
20mm | CNC 86-11CS 20mm | |||
1-1/4" | 1-3/4" | 2-1/8" | 10mm | CNC 86-12CS 10mm |
12mm | CNC 86-12CS 12mm | |||
16mm | CNC 86-12CS 16mm | |||
20mm | CNC 86-12CS 20mm | |||
25mm | CNC 86-12CS 25mm | |||
1-1/2" | 2-1/8" | 2-1/2" | 10mm | CNC 86-13CS 10mm |
12mm | CNC 86-13CS 12mm | |||
16mm | CNC 86-13CS 16mm | |||
20mm | CNC 86-13CS 20mm | |||
25mm | CNC 86-13CS 25mm | |||
32mm | CNC 86-13CS 32mm | |||
1-3/4" | 2-5/8" | 3" | 12mm | CNC 86-14CS 12mm |
16mm | CNC 86-14CS 16mm | |||
20mm | CNC 86-14CS 20mm | |||
25mm | CNC 86-14CS 25mm | |||
32mm | CNC 86-14CS 32mm | |||
40mm | CNC 86-14CS 40mm | |||
2" | 3" | 3-1/2" | 12mm | CNC 86-15CS 12mm |
16mm | CNC 86-15CS 16mm | |||
20mm | CNC 86-15CS 20mm | |||
25mm | CNC 86-15CS 25mm | |||
32mm | CNC 86-15CS 32mm | |||
40mm | CNC 86-15CS 40mm | |||
45mm | CNC 86-15CS 45mm | |||
2-1/2" | 3-1/2" | 4" | 20mm | CNC 86-16CS 20mm |
25mm | CNC 86-16CS 25mm | |||
32mm | CNC 86-16CS 32mm | |||
40mm | CNC 86-16CS 40mm | |||
45mm | CNC 86-16CS 45mm | |||
50mm | CNC 86-16CS 50mm | |||
3" | 4-1/8" | 4-1/2" | 25mm | CNC 86-17CS 25mm |
32mm | CNC 86-17CS 32mm | |||
40mm | CNC 86-17CS 40mm | |||
45mm | CNC 86-17CS 45mm | |||
50mm | CNC 86-17CS 50mm | |||
60mm | CNC 86-17CS 60mm | |||
65mm | CNC 86-17CS 65mm | |||
3-1/2" | 4-3/4" | 5-1/4" | 25mm | CNC 86-18CS 25mm |
32mm | CNC 86-18CS 32mm | |||
40mm | CNC 86-18CS 40mm | |||
45mm | CNC 86-18CS 45mm | |||
50mm | CNC 86-18CS 50mm | |||
60mm | CNC 86-18CS 60mm | |||
65mm | CNC 86-18CS 65mm |
