HARD JAWS - SQUARE SERRATED KEY TYPE

SQUARE KEY SERRATED
HARD JAWS
FEATURES:
  • Designed for first operation roughing, expect standard runout between 0.005-0.010
  • Reversible-suitable for OD & ID workholding.
  • XTRA BITE -very aggressive bite. Has conical teeth for extra gripping power and ground body to provide improved runout.
Prices are pulled from our database in real time. Press Add button to see product price.

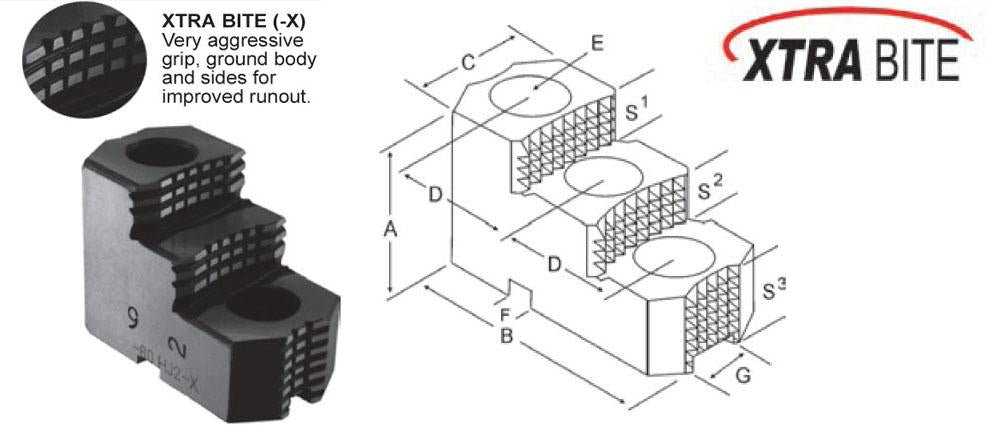

Critical Dimensions
GROUP Chuck Size Groove Width
G
Tongue Width
F
Screw Size
E
Hole Space
D
Tap Hole Width Inch
C
OAL Inch
B
Height Inch
A
No.
of
Holes
No.
of
Steps
Top
Step Ht
S1
Mid
Step Ht
S2
Bot
Step Ht
S3
Part
Number
SI-07-1/2-17 12 0.750 0.994 1/2 1.750 5/16-18 1.750 4.875 2.469 2 2 0.650 0.650 1.169 SP-120HJ2-X
SI-07-5/8-17 12 0.750 0.994 5/8 1.750 5/16-18 1.750 4.875 2.469 2 2 0.650 0.650 1.169 SP-125HJ2-X
SI-10-3/4-25 15 & UP 1.000 1.488 3/4 2.500 3/8-16 2.500 5.500 3.469 2 2 0.950 0.950 1.569 SP-150HJ2-X
