SE Series Chuck

6-jaw scroll chuck plain back
  • SE types are specially meet for drilling*endmilling*tapping or grinding in tool grinders.
  • Huge bore diameter design for wider application of bar workpieces.
  • SE type feature gripping for thin tube and high roundness accuracy.
  • The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

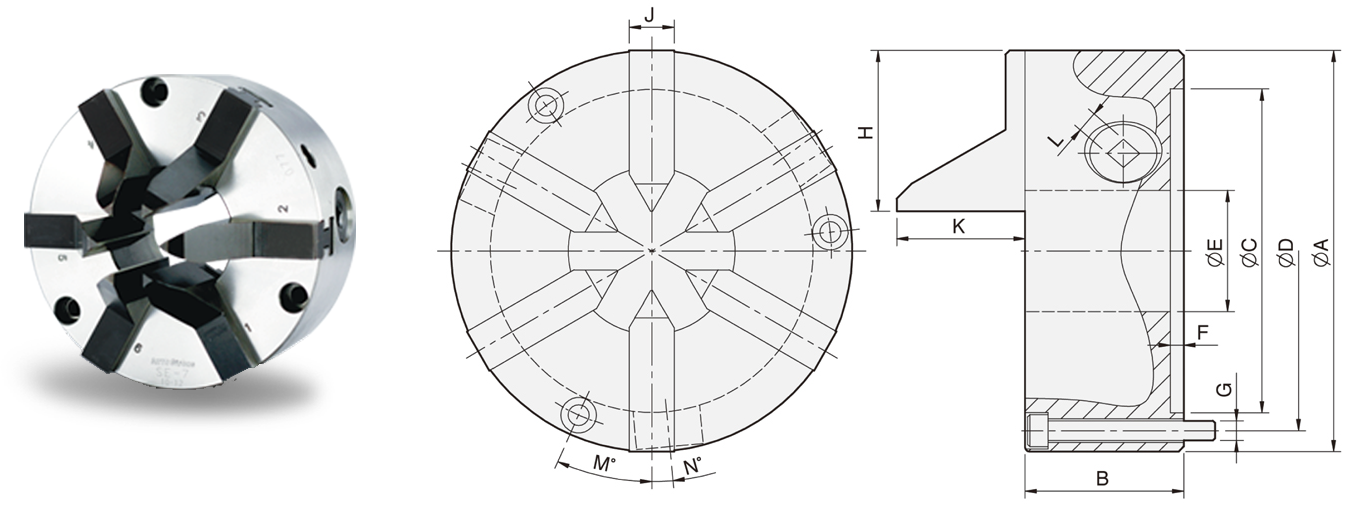

A B C D E F G H J K L M N Allowable Handle Torque
(kgf.m)
Gripping Force
(kgf)
Max. Speed
(r.p.m.)
Weight
(kg)
Moment Of
Inertia
I
(kg .m²)
Gripping
O.D. Range
Part Number Price Each
112 66 80 95 32 4.8 3-M8×65 45 14 39.7 8 30 6.5 1.6 440 1200 4 --- Ø2-Ø32 SE-4
Call or Email
165 67 130 147 51 5.5 3-M8×70 66.5 19 40.7 10 23.3 6.2 2.8 660 1200 9 0.03 Ø3-Ø51 SE-6
Call or Email
192 76.5 155 172 80 5.5 3-M10×75 77 21.5 61.5 11 24 5.3 3.6 850 1000 14 0.06 Ø3-Ø81 SE-7
Call or Email
