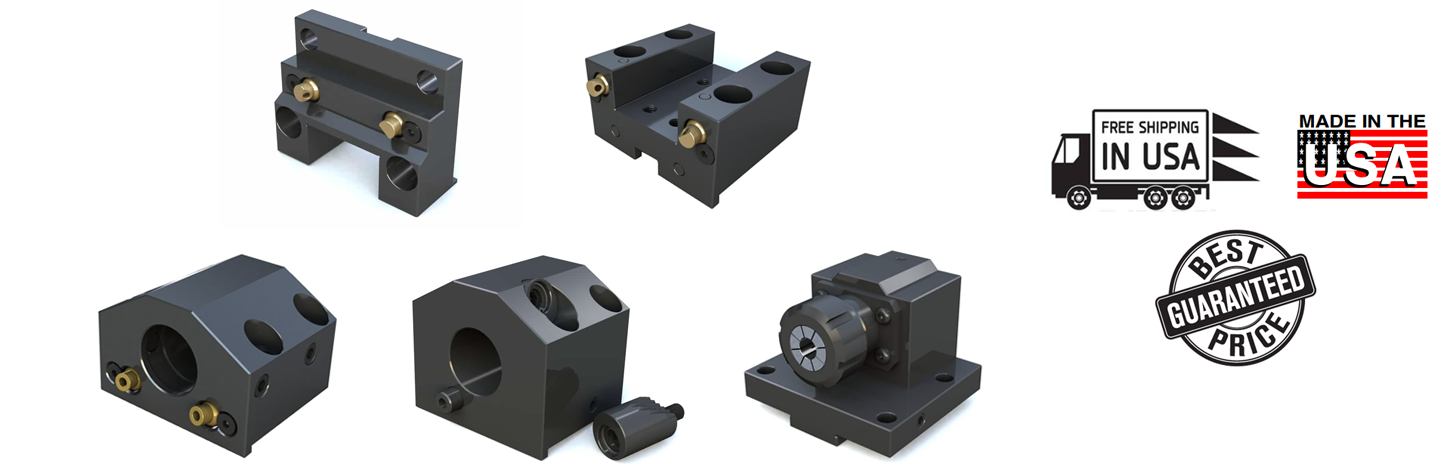

Okuma Tool Blocks
Tool Block Features
- Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
- Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
- Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
- Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
- Components Included: Wedges, Coolant Nozzles and Set Screws.
- Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
- Made in the USA.
- VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
- ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
- Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
- More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
| Bolt Hole Pattern: 80mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Cadet, Captain 370, ESL8, ESL10, Heritage LB-15, LB15IIM, LB250T, LU25, LU15, Crown LB25, CAP470, L1420, LB4000EXBB/1500, L470, Genos250-V8, LB3000**, LU4000** | 0.75" | 1.25" | A118-8420 DBL | A118-8311 1" Sq. | A118-8411 1" Sq. | CALL |
| 1" | 1.25" | A118-8425 | CALL | |||
| 1.25" | 1.25" | A118-8432 | CALL | |||
| 1.50" | 1.25" | A118-8435 | CALL | |||
| 2" | 1.35" | A118-8436 | CALL | |||
| 2.5" | 1.625" | A118-8437 | CALL | |||
| 2" | 60mm | **A118-8636X60CL | CALL |
| Bolt Hole Pattern: 85mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LB35, LU35 | 1.5" | 1.375" | LB35-8435 | LB35-8311 1" Sq. | LB35-8411 1" Sq. | CALL |
| 2" | 1.375" | LB35-8436 | CALL | |||
| 2.5" | 1.625" | LB35-8437 | CALL |
| Bolt Hole Pattern: 105mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LB45, LU45 | 1.5" | 1.625" | LB45-8435 | LB45-8311B 1.25" Sq. | LB45-8411B 1.25" Sq. | CALL |
| 2" | 1.625" | LB45-8436 | CALL | |||
| 2.5" | 1.625" | LB45-8437 | CALL | |||
| 3" | LB45-8475 | CALL | ||||
| 2.5" | 40mm | LB45Wide-8437 Split | CALL |
| Bolt Hole Pattern: 73mm x 65mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LB2000, LB2500, LB3000, LB3000EX | 0.625" | 90mm | LB3000-8416 | LB3000-8311 1" Sq. | LB3000-8411 1" Sq. | CALL |
| 0.75" | 90mm | LB3000-8420 | LB3000-8311 DBL 1" Sq. | CALL | ||
| 1" | 90mm | LB3000-8425 | CALL | |||
| 1.25" | 90mm | LB3000-8432 | CALL | |||
| 1.5" | 90mm | LB3000-8435 | CALL | |||
| 2" | 90mm | LB3000-8436 | CALL |
| Bolt Hole Pattern: 80mm x 78mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LB4000, LB4000EX | 1.25" | 90mm | LB4000-8432 | LB4000-8311 1" Sq. | LB4000-8411 1" Sq. | CALL |
| 1.5" | 90mm | LB4000-8435 | LB4000-8311 DBL 1" Sq. | CALL | ||
| 2" | 90mm | LB4000-8436 | CALL | |||
| 2.5" | 90mm | LB4000-8437 | CALL |
| Bolt Hole Pattern: 70mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LB-9, LB-10, GenosL250V12, ESL6 Heritage | 0.75" | 1" | LB9-8420 | LB9-8311A .75" Sq. | LB9-8411A .75" Sq. | CALL |
| 1" | 1" | LB9-8425 | CALL | |||
| 1.25" | 1" | LB9-8432 | CALL | |||
| 1.5" | 1" | LB9-8435 | CALL |
| Bolt Hole Pattern: 80mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LC20 | 1.25" | 1.25" | LC20-8432 | LC20-8311 1" Sq. | LC20-8411 1" Sq. | CALL |
| 1.5" | 1.25" | LC20-8435 | CALL | |||
| 2" | 1.25" | LC20-8436 | CALL |
| Bolt Hole Pattern: 85mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LC30 | 2" | 1.625" | LC30-8436 | LC30-8311/8411Combo OD Holder 1" Sq. | CALL |
| Bolt Hole Pattern: 105mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LC40 | 2" | 1.625" | LC40-8436 | LC40-8311B 1.25" Sq. | LC40-8411B 1.25" Sq. | CALL |
| 2.5" | 1.625" | LC40-8437 | CALL |
| Bolt Hole Pattern: 80mm x 120mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LC50 | 2.5" | 1.75" | LC50-8437 | LC50-8311B 1.25" Sq | LC50-8411B 1.25" Sq | CALL |
| 3" | 2" | LC50-8475 | CALL |
| Bolt Hole Pattern: 160mm x 120mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| LFS12 | 1.25" | 115mm | LFS12-8432 | LFS12-8311 1" Sq. | LFS12-8411 1" Sq. | CALL |
