MS250C/MS300C Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder
(valve and switch brackets included)
  • Through-hole for coolant, oil or air with thread for rotary unit.
  • Mounting from the rear or front side.
  • Built-in safety check valves and bracket for proximity switch. (The proximity switches are extra option.)
Piston
Dia.
(mm)
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
250 481.5 453.6 227(23147) 214(21822) 60 4.9(50) 2000 0.87 78 2 MS250C
Call or Email
300 697.5 658.6 262(26716) 247(25186) 60 4.0(40.8) 1500 1.6 106 3 MS300C
Call or Email

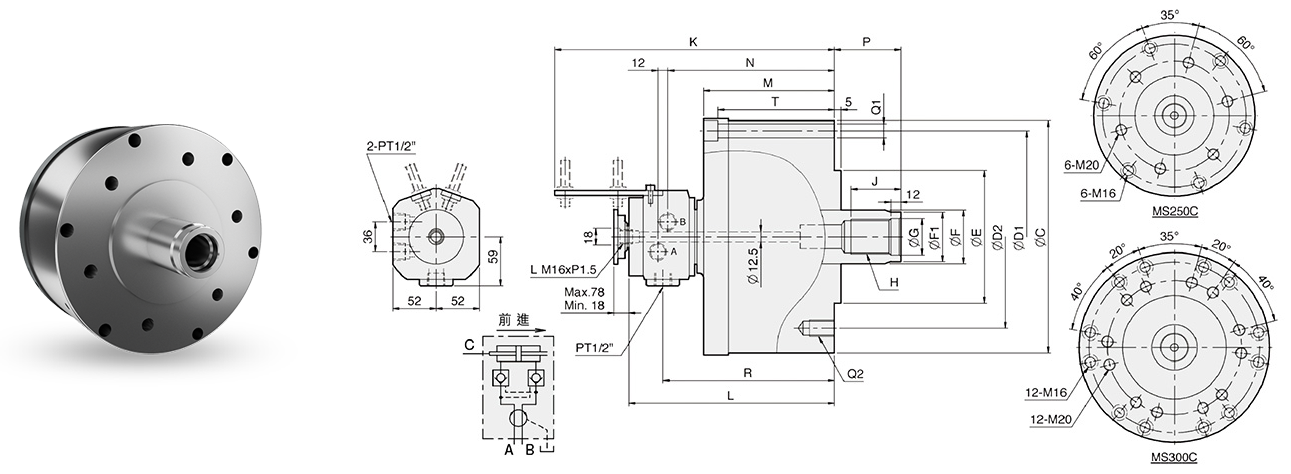

C D1 D2 E
(h7)
F F1 G H J K L M N P
max.
P
min.
Q1 Q2 R T DIM Part Number Price Each
300 275 220 160 65 62 44 M42x3.0 60 356 267 177 220 85 25 6-Ø17 6-M20x30 226 160 MS250C Call or Email
355 330 270 210 75 70 50 M48x3.0 70 359 270 182 223 85 25 12-Ø17 12-M20x30 229 165 MS300C Call or Email
