MS Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder (valve included)
  • Built-in safty check valves.
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Pull Side
86 79 29(2957) 20 4.0(40.8) 6000 0.0125 7.1 0.8 MS105
Call or Email
122 113 42(4283) 25 4.0(40.8) 6000 0.0225 10 0.8 MS125
Call or Email
176 160 60(6118) 30 4.0(40.8) 5500 0.0475 13.5 0.8 MS150
Call or Email
314 290 108(11013) 35 4.0(40.8) 5500 0.0975 22 0.8 MS200
Call or Email

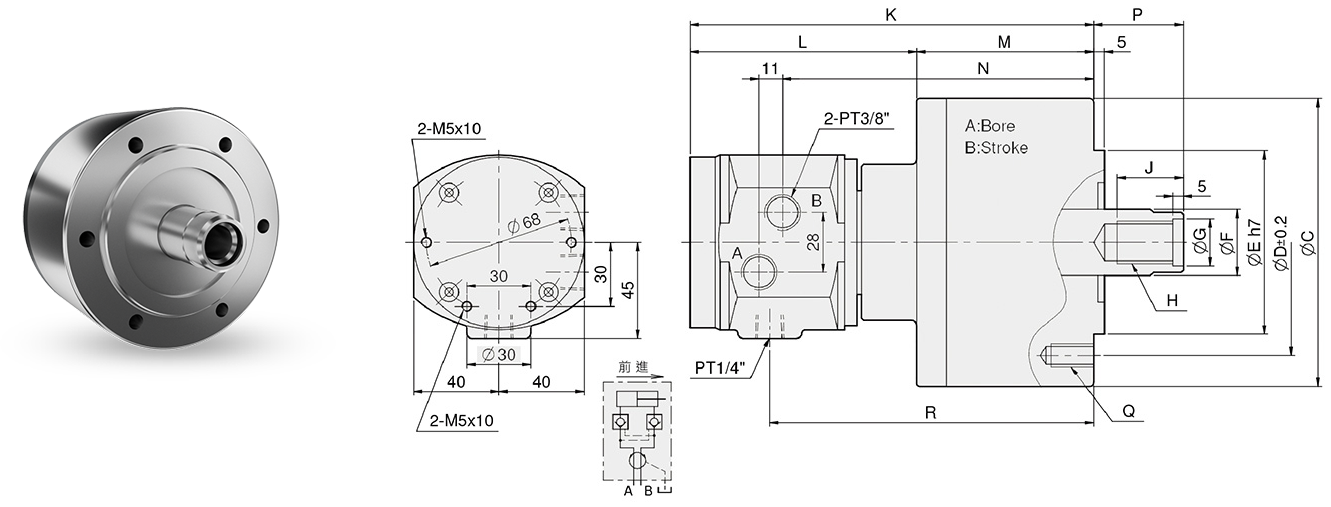

A B C D E F G H J K L M N P
max.
P
min.
Q R DIM Part Number Price Each
105 20 135 100 80 30 21 M20x2.5 35 197 108 89 152 45 25 6-M10x20 158 MS105 Call or Email
125 25 160 130 110 35 25 M24x3.0 44 205 108 97 160 51 26 6-M12x24 166 MS125 Call or Email
150 30 190 130 110 45 31 M30x3.5 45 214 108 106 169 56 26 12-M12x24 175 MS150 Call or Email
200 35 245 145 120 55 37 M36x4.0 60 228 108 122 183 69 34 12-M16x30 189 MS200 Call or Email
