Type Z Bushing - Bush Rite

TYPE Z BUSHINGS
The most flexible toolholder bushing for all types of N/C-CNC turning centers, turret lathes and chuckers. Elongated slot give the user a complete interchangeability with all brands of equipment.
FEATURES:
  • Increased step diameter for easy and perfect sealing.
  • Concentric ground and diamond polished OD & ID resulting in a mirror smooth finish
  • ”Easy Entry” feature on OD for quick insertion
  • Wrench flats for easy removal
  • Step relief for easy removal and gripping on Z style bushings
  • Type and size clearly marked on surface of head diameter for easy identification
  • 100% Satisfaction Guaranteed!
Prices are pulled from our database in real time. Press Add button to see product price.

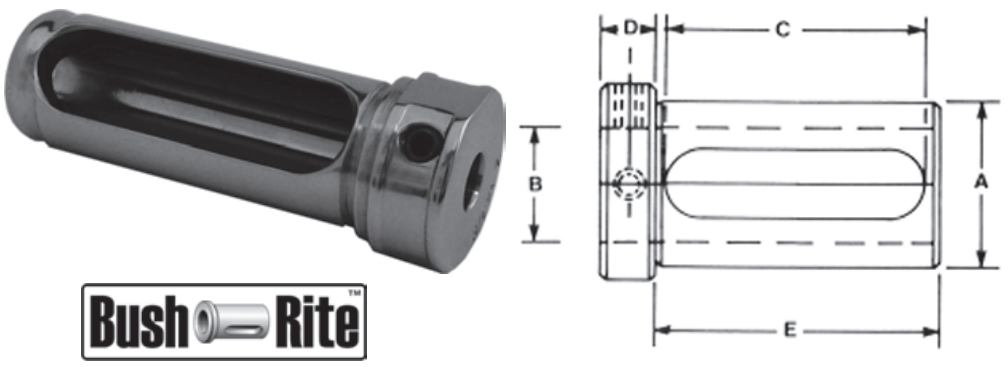

A
O.D.
E Length Under Head D Head Thick. C Slot Length B
I.D.
Part Number
3/4” 1/4” TBZ-07-0250-B
5/16” TBZ-07-0312-B
3/8” TBZ-07-0375-B
1/2” TBZ-07-0500-B
1” 2-3/4” 1/2” 2-3/8” 1/4” TBZ-10-0250-B
5/16” TBZ-10-0312-B
3/8” TBZ-10-0375-B
1/2” TBZ-10-0500-B
5/8” TBZ-10-0625-B
3/4” TBZ-10-0750-B
1-1/4” 3” 5/8” 2-5/8” 3/8” TBZ-12-0375-B
1/2” TBZ-12-0500-B
5/8” TBZ-12-0625-B
3/4” TBZ-12-0750-B
7/8” TBZ-12-0875-B
1” TBZ-12-1000-B
1-1/2” 3-1/4” 3/4” 2-7/8” 3/8” TBZ-15-0375-B
1/2” TBZ-15-0500-B
5/8” TBZ-15-0625-B
3/4” TBZ-15-0750-B
7/8” TBZ-15-0875-B
1” TBZ-15-1000-B
1-1/4” TBZ-15-1250-B
1-3/4” 3-1/2” 3/4” 3-1/8” 1/2” TBZ-17-0500-B
5/8” TBZ-17-0625-B
3/4” TBZ-17-0750-B
7/8” TBZ-17-0875-B
1” TBZ-17-1000-B
1-1/4” TBZ-17-1250-B
1-1/2” TBZ-17-1500-B
2” 3-3/4” 3/4” 3-3/8” 1/2” TBZ-20-0500-B
5/8” TBZ-20-0625-B
3/4” TBZ-20-0750-B
7/8” TBZ-20-0875-B
1” TBZ-20-1000-B
1-1/4” TBZ-20-1250-B
1-1/2” TBZ-20-1500-B
1-3/4” TBZ-20-1750-B
