Type J Bushings

TYPE J BUSHINGS
Type J bushings have clearance holes so that you can clamp directly on the tool with set screws for positive alignment of the cutting edge of the tool.
FEATURES:
  • Increased step diameter for easy and perfect sealing.
  • Concentric ground and diamond polished on OD & ID resulting in a mirror smooth finish
  • ”Easy Entry” feature on OD for quick insertion
Prices are pulled from our database in real time. Press Add button to see product price.

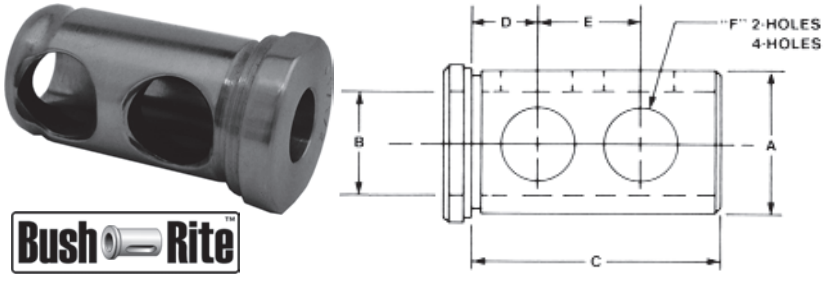

A
O.D.
C E D F B
I.D.
Part Number
3/4” 1-1/2” 13/16” 3/8” 3/8” 1/4” TBJ-07-0250-B
5/16” TBJ-07-0312-B
3/8” TBJ-07-0375-B
1/2” TBJ-07-0500-B
1” 1-3/4” 7/8” 7/16” 5/8” 3/8” TBJ-10-0375-B
1/2” TBJ-10-0500-B
5/8” TBJ-10-0625-B
3/4” TBJ-10-0750-B
1-1/4” 2-1/8” 1” 5/8” 5/8” 3/8” TBJ-12-0375-B
1/2” TBJ-12-0500-B
5/8” TBJ-12-0625-B
3/4” TBJ-12-0750-B
7/8” TBJ-12-0875-B
1” TBJ-12-1000-B
1-1/2” 2-1/2” 1-1/8” 11/16” 7/8” 3/8” TBJ-15-0375-B
1/2” TBJ-15-0500-B
5/8” TBJ-15-0625-B
3/4” TBJ-15-0750-B
7/8” TBJ-15-0875-B
1” TBJ-15-1000-B
1-1/4” TBJ-15-1250-B
1-3/4” 3” 1-1/4” 3/4” 7/8” 1/2” TBJ-17-0500-B
5/8” TBJ-17-0625-B
3/4” TBJ-17-0750-B
7/8” TBJ-17-0875-B
1” TBJ-17-1000-B
1-1/4” TBJ-17-1250-B
1-1/2” TBJ-17-1500-B
2” 3-1/2” 1-1/2 3/4” 1 1/2” TBJ-20-0500-B
5/8” TBJ-20-0625-B
3/4” TBJ-20-0750-B
7/8” TBJ-20-0875-B
1” TBJ-20-1000-B
1-1/4” TBJ-20-1250-B
1-1/2” TBJ-20-1500-B
1-3/4” TBJ-20-1750-B
