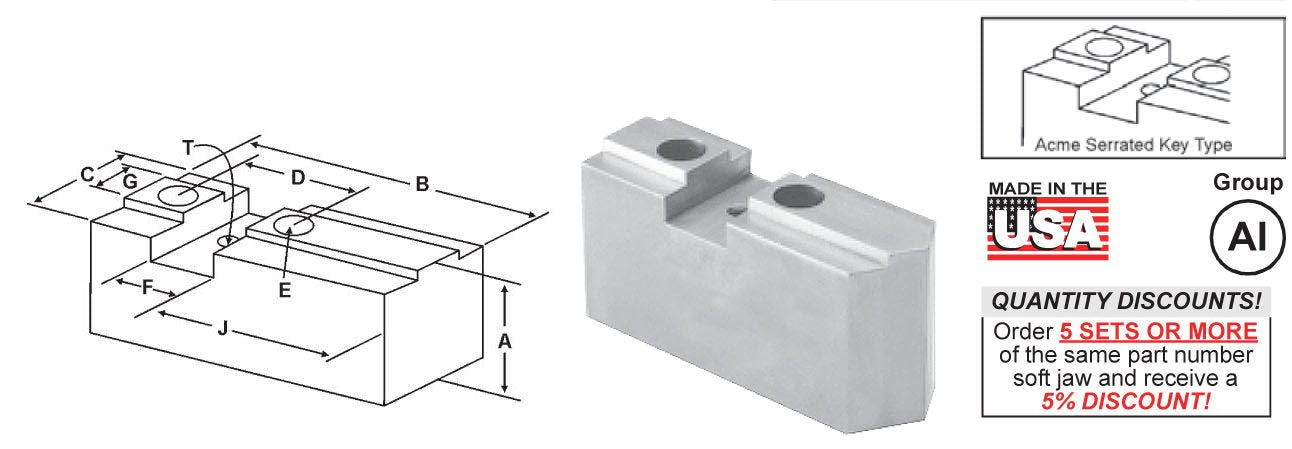

SOFT JAWS POINTED - ACME SERRATED KEY TYPE
FOR USE ON: Cushman, Logansport, Howa, Autoblok, PBA & Other Chucks
- Acme Serrated Key Type
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel
Critical Dimensions | ALUMINUM | STEEL | ||||||||||
Group No. |
Chuck Size | Tap Hole T |
Groove Width G |
Key Width F |
Screw Size E |
Hole Space D |
Hght Inch A |
Key to Front J |
Width Inch C |
Length Inch B |
POINTED END Part Number |
POINTED END Part Number |
AI-06-1/2-12 | 8 | 10-24 | 0.670 | 0.601 | 1/2 | 1.250 | 2.00 | 2.000 | 1.50 | 3.75 | AC-8200AP | AC-8200P |
9 | 10-24 | 0.670 | 0.601 | 1/2 | 1.250 | 4.00 | 2.000 | 1.50 | 3.75 | AC-8400AP | AC-8400P | |
AI-07-1/2-17 | 10 | 5/16-18 | 0.750 | 1.031 | 1/2 | 1.750 | 2.50 | 2.250 | 1.75 | 4.25 | AC-10250AP | AC-10250P |
4.00 | 2.250 | 1.75 | 4.25 | AC-10400AP | AC-10400P | |||||||
0.750 | 1.031 | 1/2 | 1.750 | 2.50 | 3.425 | 1.75 | 5.50 | AC-10251AP* | AC-10251P* | |||
4.00 | 3.425 | 1.75 | 5.50 | AC-10401AP* | AC-10401P* | |||||||
AI-08-5/8-20 | 12 | 5/16-18 | 0.875 | 1.031 | 5/8 | 2.000 | 2.50 | 3.125 | 1.75 | 5.25 | AC-12250AP | AC-12250P |
3.00 | 3.125 | 1.75 | 5.25 | AC-12300AP | AC-12300P | |||||||
4.00 | 3.125 | 1.75 | 5.25 | AC-12400AP | AC-12400P | |||||||
5.00 | 3.125 | 1.75 | 5.25 | AC-12500AP | AC-12500P | |||||||
AI-10-3/4-25 | 15 - 18 | 3/8-16 | 1.000 | 1.531 | 3/4 | 2.500 | 2.50 | 3.000 | 2.00 | 6.25 | AC-15250AP | AC-15250P |
4.00 | 3.000 | 2.00 | 6.25 | AC-15400AP | AC-15400P | |||||||
1.000 | 1.531 | 3/4 | 2.500 | 2.50 | 3.400 | 2.50 | 6.25 | AC-18250AP | AC-18250P | |||
2.500 | 4.00 | 3.400 | 2.50 | 6.25 | AC-18400AP | AC-18400P | ||||||
5.00 | 3.400 | 2.50 | 6.25 | AC-18500AP | AC-18500P | |||||||
AI-12-7/8-30 | 21 - 24 | 3/8-16 | 1.250 | 1.531 | 7/8 | 3.000 | 4.00 | 2.625 | 2.50 | 6.50 | AC-21400AP | AC-21400P |
5.00 | 2.625 | 2.50 | 6.50 | AC-21500AP | AC-21500P |
