SOFT JAWS POINTED - 1.5 mm x 60° Serrations - Chuck Size 4 - 8

FOR USE ON: Kitagawa®, Samchully®, Strong®, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
  • 1.5mm x 60° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum, Steel & Aircraft Aluminum (where noted)
Prices are pulled from our database in real time. Press Add button to see product price.

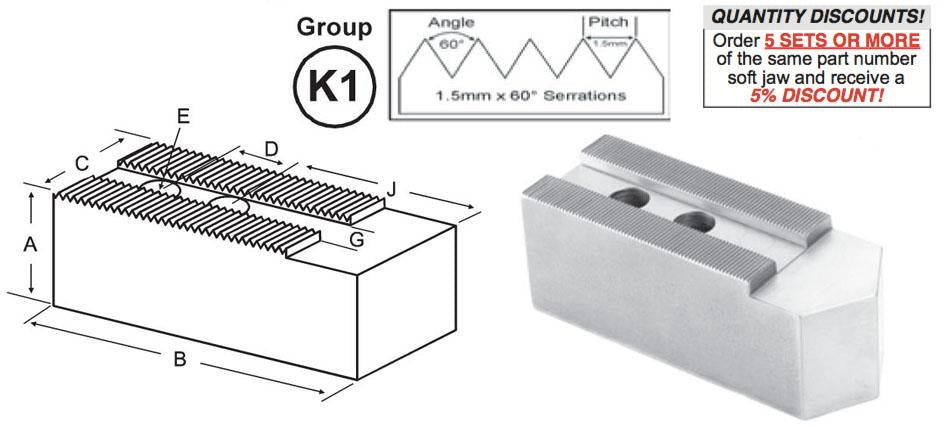

Critical Dimensions ALUMINUM STEEL
Group
No
Chuck
Size
Groove
Width
G
Screw
Size
E
Hole
Space
D
Height
Inch
A
Hole to
Front
J
Width
Inch
C
Length
Inch
B
No.
of
Holes
Industry
Reference
POINTED END
Part
Number
POINTED END
Part
Number
K1-08-15 4" 0.315 (8mm) 6mm 0.590 (15mm) 1.000 1.000 0.750 2.000 2 - KT-4100AP
KT-4100P
B-04,BT-04 2.000 1.000 0.750 2.000 2 - KT-4200AP
KT-4200P
K1-10-12 4" 0.394 (10mm) 6mm 0.470 (12mm) 1.000 1.000 0.750 2.000 2 - KT-4103AP
KT-4103P
2.000 1.000 0.750 2.000 2 - KT-4203AP
KT-4203P
K1-10-14 4" 0.394 (10mm) 8mm 0.551 (14mm) 1.000 1.000 1.000 2.000 2 - KT-4105AP
KT-4105P
B-204,B-205 2.000 1.000 1.000 2.000 2 - KT-4205AP
KT-4205P
K1-10-18 5" 0.394 (10mm) 8mm 0.713 (18mm) 1.500 1.250 1.000 2.375 2 - KT-5153AP
KT-5153P
B-05,
BT-05,
HOB-5
HOBT-5
2.000 1.250 1.000 2.375 2 - KT-5203AP
KT-5203P
2.500 1.250 1.000 2.375 2 - KT-5253AP
KT-5253P
3.000 1.250 1.500 2.375 2 - KT-5303AP
KT-5303P
1.900 1.250 3.000 2 - KT-5303APL*
KT-5303PL*
4.000 1.900 1.250 3.000 2 - KT-5403AP
KT-5403P
K1-10-19 5" 0.394 (10mm) 8mm 0.748 (19mm) 1.500 1.250 1.500 2.375 2 - KT-5150AP
KT-5150P
N-05,
NT-05
2.500 1.250 1.500 2.375 2 - KT-5250AP
KT-5250P
3.000 1.250 1.500 2.375 2 - KT-5300AP
KT-5300P
K1-11-17 5" 0.433 (11mm) 8mm 0.669 (17mm) 1.500 1.270 1.000 2.375 2 - NK-5150AP*
NK-5150P*
Nikko 5" 2.000 1.270 1.000 2.375 2 - NK-5200AP*
NK-5200P*
K1-11-20 6" 0.433 (11mm) 10mm 0.787 (20mm) 1.500 1.625 1.250 3.000 2 - HO-6150AP
HO-6150P
2.000 1.625 1.250 3.000 2 - HO-6200AP
HO-6200P
2.500 1.625 1.250 3.000 2 - HO-6250AP
HO-6250P
3.000 1.625 1.250 3.000 2 - HO-6300AP
HO-6300P
K1-11-25 6" 0.433 (11mm) 8mm 0.985 (25mm) 1.500 1.625 1.000 3.000 2 - SG-6150AP
SG-6150P
MMK:
Z-6,
ZA5-6-0,
ZA5-6B,
ZJA5-6
1.625 1.250 3.000 2 - SG-6152AP
SG-6152P
2.500 1.625 1.000 3.000 2 - SG-6250AP
SG-6250P
1.625 1.250 3.000 2 - SG-6252AP
SG-6252P
3.000 1.625 1.000 3.000 2 - SG-6300AP
SG-6300P
K1-12-20 6" 0.472 (12mm) 10mm 0.787 (20mm) 1.000 1.625 1.250 3.000 2 - KT-6100AP
KT-6100P
Kitagawa
BB-06,
B-06,
B-206,
BT-06,
BT206,
Strong
N206
Samchully
HS-06
Howa:
HO15M6,
HO22M6,
HO24M6,
HO27M6
MMK:
YA5-6-46
1.500 1.625 1.250 3.000 2 - KT-6150AP
KT-6150P
1.625 1.250 3.000 2 - KT-6150BP
-
1.625 2.000 3.000 2 - KT-6152AP
KT-6152P
2.125 1.250 3.000 2 - KT-6151AP
KT-6151P
2.000 1.625 1.250 3.000 2 - KT-6200AP
KT-6200P
1.625 1.250 3.000 2 - KT-6200BP
-
2.500 1.625 1.250 3.000 2 - KT-6250AP
KT-6250P
3.000 1.625 1.250 3.000 2 - KT-6300AP
KT-6300P
1.625 1.250 3.000 2 - KT-6300BP
-
1.625 2.000 3.000 2 - KT-6302AP
KT-6302P
3.500 1.625 1.250 3.000 2 - KT-6350AP
KT-6350P
4.000 1.625 1.250 3.000 2 - KT-6400AP
KT-6400P
5.000 1.625 1.250 3.000 2 - KT-6500AP*
KT-6500P*
K1-14-20 6" 0.551 (14mm) 10mm 0.790 (20mm) 1.500 1.625 1.250 3.000 2 - NK-6150AP
NK-6150P
Nikko 6" 2.500 1.625 1.250 3.000 2 - NK-6250AP
NK-6250P
K1-14-25 8" 0.551 (14mm) 12mm 0.984 (25mm) 1.500 2.000 1.500 3.750 2 - KT-8150AP
KT-8150P
Kitagawa
B-08,
B-208
BB08,
BB208


Samchully
HS-08
HC-08
HCH-08


Strong
N208, NB208
NT208,
NIT208,
V208


MMK
PC-8-52
ZA6-8,
HA6-8,
HH-8,HHJ-8


HOWA
H3KT8,
HO15M8,
HO7MA8


SMW
Autoblok
BBM-210,
BHM-210
2.4690 1.500 4.250 2 HR-149-1.5-O or OP KT-8150-24AP
KT-8150-24P
2.000 1.179 1.500 3.500 2 HR149-2.0 KT-8200-17AP
KT-8200-17P
2.000 1.500 3.750 2 - KT-8200AP
KT-8200P
2.000 1.500 3.750 2 - KT-8200BP
-
2.016 1.500 3.750 2 KT-8/KT-8P - KT-8-P
2.250 1.500 4.000 2 - KT-8201AP
KT-8201P
2.250 1.500 4.000 2 - KT-8201BP
-
2.266 1.500 4.000 2 KT-8PL - KT-8PL-P
2.4690 1.500 4.250 2 HR-149-2.0-O or OP KT-8200-25AP
KT-8200-25P
2.500 1.7190 1.500 3.500 2 HR-149-2.5 KT-8250-17AP
KT-8250-17P
2.4690 1.500 4.250 2 HR-149-2.5-O or OP KT-8250-25AP
KT-8250-25P
3.00 2.000 1.500 3.750 2 - KT-8300AP
KT-8300P
2.000 1.500 3.750 2 - KT-8300BP
-
2.016 1.500 3.750 2 KT-8MH/KT-8MHP - KT-8MH-P
2.250 1.500 4.000 2 - KT-8301AP
KT-8301P
2.266 1.500 4.000 2 KT-8MHPL - KT-8MHPL-P
3.500 1.7190 1.500 3.500 2 HR-149-3.5 KT-8350-17AP
KT-8350-17P
2.4690 1.500 4.250 2 HR-149-3.5-O or OP KT-8350-25AP
KT-8350-25P
4.00 2.000 1.500 3.750 2 - KT-8400AP
KT-8400P
2.016 1.500 3.750 2 KT-8EH/KT-8EHP - KT-8EH-P
2.250 1.500 4.000 2 - KT-8401AP
KT-8401P
2.266 1.500 4.000 2 KT-8EHPL - KT-8EHPL-P
5.000 1.7190 1.500 3.500 2 HR-149-5.0 KT-8500-17AP
KT-8500-17P
2.000 1.500 3.750 2 - KT-8500AP
KT-8500P
2.4690 1.500 4.250 2 HR-149-5.0-O or OP KT-8500-25AP
KT-8500-25P
6.00 2.000 1.500 3.750 2 - KT-8600AP
KT-8600P
2.250 1.500 4.000 2 - KT-8601AP
KT-8601P
K1-14-30 8" 0.551 (14mm) 10mm 1.181 (30mm) 2.000 1.970 1.500 3.750 2 - SG-8200AP
SG-8200P
Suga 8" 3.000 1.970 1.500 3.750 2 - SG-8300AP
SG-8300P
4.000 1.970 1.500 3.750 2 - SG-8400AP
SG-8400P
K1-16-25 8" 0.630 (16mm) 12mm 0.984 (25mm) 2.000 2.000 1.500 3.750 2 - HO-8200AP
HO-8200P
HOWA
HO15M10,
HO22M8,
HO24M8,
HO27M8,
HO34M8
2.000 1.500 4.500 2 - HO-8200APL-P
HO-8200PL-P
2.250 1.500 4.000 2 - HO-8201AP
HO-8201P
3.000 2.000 1.500 3.750 2 - HO-8300AP
HO-8300P
4.000 2.000 1.500 3.750 2 - HO-8400AP
HO-8400P
6.000 2.000 1.500 3.750 2 - HO-8600AP
HO-8600P
K1-17-23 8" 0.669 (17mm) 12mm 0.905 (23mm) 2.000 2.000 1.500 3.750 2 - AB-8200AP
AB-8200P
SMW 200,
SMW 210
3.000 2.000 1.500 3.750 2 - AB-8300AP
AB-8300P
4.000 2.000 1.500 3.750 2 - AB-8400AP
AB-8400P
K1-17-25 8" 0.669 (17mm) 12mm 0.984 (25mm) 2.000 2.000 1.500 3.750 2 - AB-8205AP
AB-8205P
