JAW NUTS & SCREWS

FREE SCREWS!
2 High Grade Socket Head Cap Screws Provided With Each Jaw Nut!

Prices are pulled from our database in real time. Press Add button to see product price.

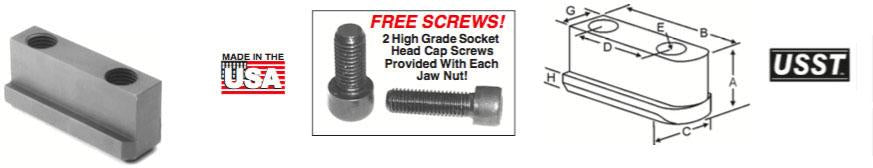

			Critical Dimensions							2 Screws Included With Each Jaw Nut
Kitagawa	MMK Matsumoto	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
B-04,BT-04, HOB-4		4	0.220	0.312 (8mm)	M6-1.00x25mm	0.590 (15mm)	0.531	0.453	0.965	KT-40JN	M0610025
NL-04,AS-04,AT-04, HJ-4,N-04,NT-04	H-4(HPC),H4 (NAK),HH-4	4	0.220	0.392 (10mm)	M8-1.25x30mm	0.551 (14mm)	0.710	0.590	1.030	KT-45JN	M0812530
B-204, B-205 N204/205, HS05		4/5	.220	0.394 (10mm)	M8-1.25x25mm	0.551 (14mm)	0.590	0.590	1.026	KT-204JN	M0812525
HOBT-5,B-05, BT-05,HOB-5		5	0.220	0.392 (10mm)	M8-1.25x25mm	0.713 (18mm)	0.612	0.550	1.180	KT-53JN	M0812525
HJ-5,N-05, NT-05		4	0.220	0.392 (10mm)	M8-1.25x25mm	0.748 (19mm)	0.612	0.550	1.180	KT-50JN	M0812525

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
-	6	0.295	0.432 (11mm)	M10-1.60x30mm	0.787 (20mm)	0.847	0.669	1.460	HO-62JN	M1016030
MMK: Z-6,ZA5-6-0, ZA5-6B,ZJA5-6	6	0.295	0.432 (11mm)	M8-1.25x30mm	0.984 (25mm)	0.790	0.690	1.570	SG-60JN	M0812530
Kitagawa: B-206,BT-206,BB-06,B-07 Strong: N206 Samchully: HS-06 MMK:PC-6-46	6	0.295	0.472 (12mm)	M10-1.60x30mm	0.787 (20mm)	0.728	0.689	1.417	KT-60JN	M1016030
Kitagawa: B-06	6	0.295	0.472 (12mm)	M10-1.60x30mm	0.787 (20mm)	0.885	0.689	1.440	KT-61JN	M1016030

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
MMK: ZA6-8	8	0.335	0.549 (14mm)	M12-1.75x35mm	0.984 (25mm)	0.895	0.807	1.840	KT-82JN	M1217535
Kitagawa: BB-08,B-208 Strong: N208 Samchully: HS-08 MMK: PC-8-52	8	0.335	0.549 (14mm)	M12-1.75x30mm	0.984 (25mm)	0.807	0.807	1.880	KT-81JN	M1217530
Kitagawa:NT-08,B-08, BT-08,HOB-8	8	0.374	0.549 (14mm)	M12-1.75x35mm	0.984 (25mm)	1.000	0.807	1.880	KT-80JN	M1217535

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
Howa: HO15M10,HO22M10,HO24M10	8	0.355	0.629 (16mm)	M12-1.75x40mm	0.984 (25mm)	1.040	0.807	1.830	HO-80JN	M1217540

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
Kitagawa: B-210,BT-210 Strong: N210 MMK:H-10,HA8-11 Samchully: HS-10	10	0.335	0.628 (16mm)	M12-1.75x30mm	1.181 (30mm)	0.846	0.886	1.981	KT-100JN	M1217530
Kitagawa:B-10,HOB-10	10	0.374	0.628 (16mm)	M12-1.75x35mm	1.181 (30mm)	1.000	0.886	2.160	KT-101JN	M1217535
MMK:ZA_-10, PC-10-78	10	0.315	0.628 (16mm)	M12-1.75x35mm	1.181 (30mm)	0.906	0.906	1.971	MT-101JN	M1217535

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
Hitachi-Seiki ZA/ZA_-10	10	0.315	0.628 (16mm)	M12-1.75x35mm	1.259 (32mm)	0.906	0.906	2.050	MT-100JN	M1217535
MMK: ZA_-10	10	0.315	0.628 (16mm)	M12-1.75x35mm	1.181 (30mm)	0.906	0.906	1.971	MT-101JN	M1217535
Howa: HO15M12,HO22M12	10	0.374	0.708 (18mm)	M14-2.00x40mm	1.181 (30mm)	1.083	0.945	2.360	HO-100JN	M1420040

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Kitagawa	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
Kitagawa:B-12,HOB-12 MMK:HH-12,HHL-12	12	0.531	0.708 (18mm)	M14-2.00x 45mm	1.181 (30mm)	1.318	1.040	2.185	KT-120JN	M1420045
-	12	0.531	0.708 (18mm)	M14-2.00x 45mm	1.488 (38mm)	1.318	1.040	2.185	KT-124JN	M1420045

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
B212, HS12, N212	12"	0.453	0.827 (21mm)	M16-2.00x40mm	1.181 (30mm)	1.090	1.160	2.565	KT-128JN	M1620040
-	12"	0.531	0.787 (20mm)	M12-1.75x45mm	1.375 (35mm)	1.320	1.040	2.190	SG-120JN	M1217545
-	12"	0.453	0.827 (21mm)	M16-2.00x40mm	1.378 (35mm)	1.140	1.060	2.429	HO-120JN	M1620040

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
-	12"	0.531	0.787 (20mm)	M12-1.75x45mm	1.375 (35mm)	1.320	1.040	2.190	SG-120JN	M1217545
-	12"	0.453	0.827 (21mm)	M16-2.00x40mm	1.378 (35mm)	1.140	1.060	2.429	HO-120JN	M1620040

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
-	15	0.649	0.864 (22mm)	M20-2.50x55mm	1.690 (43mm)	1.790	1.318	3.149	KT-150JN	M2025055
-	15	0.649	0.864 (22mm)	M20-2.50x55mm	2.360 (60mm)	1.798	1.320	3.820	KT-152JN	M2025055
Kitagawa: B-15, BT-15, B-18, HOB-15	15	0.636	0.861 (22mm)	M20-2.50x50mm	1.690 (43mm)	1.779	1.317	3.149	KT-153JN	M2025050

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
Kitagawa: B-215	15	0.758	1.003 (25.5mm)	M20-2.50x50mm	1.690 (43mm)	1.550	1.375	3.149	KT-151JN	M2025050

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size Pitch & Length E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
-	15	0.649	0.864 (22mm)	M20-2.50x55mm	1.690 (43mm)	1.790	1.318	3.149	KT-150JN	M2025055
-	15	0.649	0.864 (22mm)	M20-2.50x55mm	2.360 (60mm)	1.798	1.320	3.820	KT-152JN	M2025055
UVE-800LB	24	0.414	0.985	M20-2.50x50mm	3.152	1.241	1.418	4.728	KT-241JN	M2025050
HJ-24, HJA11-24	24	0.748	0.985	M20-2.50x50mm	3.152	2.127	1.576	4.728	KT-242JN	M2025050

	Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Heel Height H	Groove Width G	Screw Size E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
MMK:HO15M6,HO22M6,HO24M6, HO27M6 Howa: HJ-06	0.295	0.472 (12mm)	M10-1.60 x 30mm	0.787 (20mm)	0.847	0.669	1.460	H3-60JN	M1016030
-	0.340	0.628 (16mm)	M12-1.75 x 35mm	1.181 (30mm)	1.000	0.910	2.000	H3-100JN	M1217535

		Critical Dimensions							2 Screws Included With Each Jaw Nut
Chuck Make & Model	Chuck Size	Heel Height H	Groove Width G	Screw Size E	Hole Space D	Hght Inch A	Width Inch C	Length Inch B	Jaw Nut Part Number	Screw Part Number
MMK: HO15M15	15	0.413	0.826 (21mm)	M16-2.00 x 40mm	1.575 (40mm)	1.141	1.000	2.560	H3-158JN	M1620040
Kitagawa: B-21,B-24	18-24	0.748	0.984 (25mm)	M20-2.50 x 50mm	2.362 (60mm)	1.772	1.476	3.543	KT-240JN	M2025050
-	21-24	0.748	0.984 (25mm)	M20-2.50 x 50mm	T-Nut	1.772	1.476	1.811	KT-210JN	M2025050
MMK: HO27M15	15	0.669	1.022 (26mm)	M20-2.50 x 50mm	1.654 (42mm)	1.570	1.339	2.750	H3-154JN	M2025050
-	18-20	0.669	1.022 (26mm)	M20-2.50 x 50mm	1.968 (50mm)	1.575	1.339	3.250	H3-150JN	M2025050
