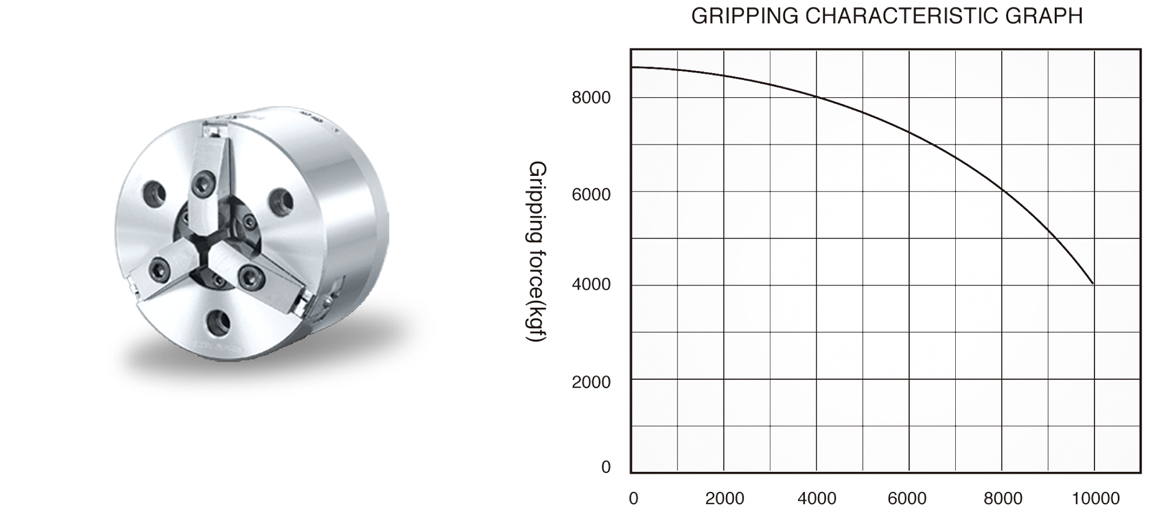

HN Special Purpose Power Chucks
- Possible 10,000 r.p.m. highest speed chuck.
- Model HN chucks are assembled with adaptor for ASA B5.9 type A spindles.
- Model HN chucks are manufactured form high grade alloy steel. All sliding surfaces are hardened and ground for accurate actual running and long service repeatability.
| Through-Hole (mm) |
Plunger Stroke (mm) |
Jaw Stroke (In Dia.) (mm) |
Max. Pull Force kN(kgf) |
Max. Gripping Force kN(kgf) |
Max. Operating Pressure MPa(kgf / cm²) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I (kg．m²) |
Matching Cylinder |
Matching Soft Jaw |
Gripping Range O.D. Range |
SPEC Part Number | Price Each |
| Ø36 | 12 | 5.5 | 30(3050) | 79.4(8100) | 2.9(30) | 10000 | 11.5 | 0.035 | HG-1336 | Model-A | Ø14-Ø51 | HN-06 | Call or Email |
