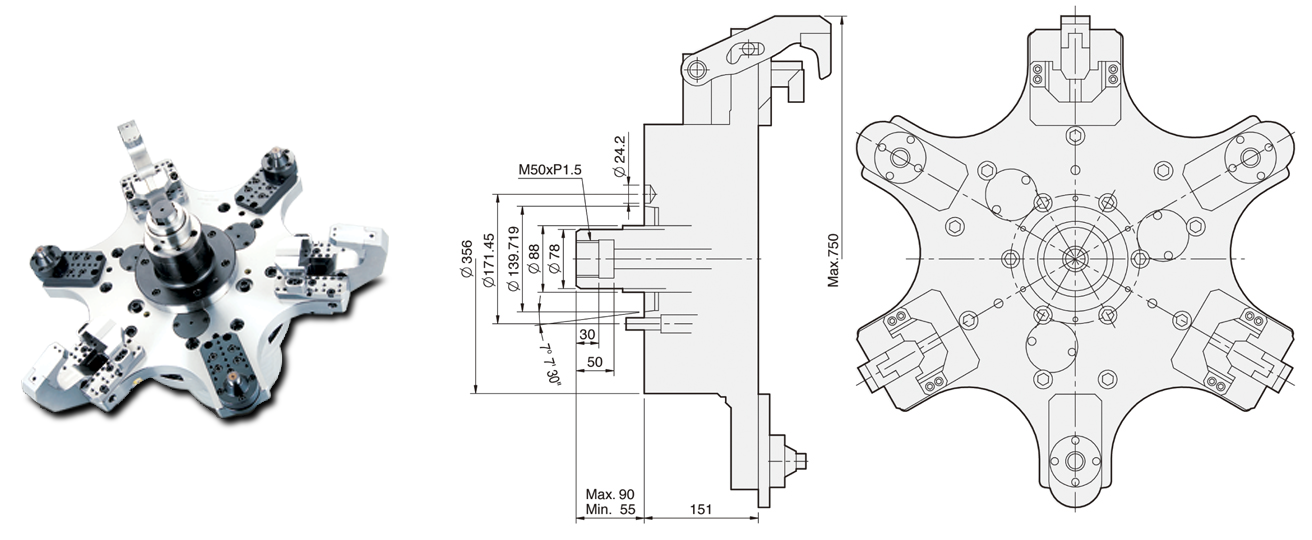

F61 Special Purpose Power Chucks

High speed and light weight type strong finger chuck for aluminum wheel
  • All sliding surfaces are hardened and ground for accurate actual running and long service repeatability.
  • Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA, B5-9 type A spindles.
Matching
Wheel Size
Out Dai.
Of Chuck
(mm)
Matching
Spindle
Max. Pull
Force
kN(kgf)
Max.
Gripping
Force
kN(kgf)
Max.
Operating
Pressure
MPa(kgf / cm²)
Max. Speed
(r.p.m.)
Weight
(Without Jigs)
(kg)
Matching
Cylinder
SPEC Part Number Price Each
13"-22" 610 A2-8 33.9(3456) 32.4(3303) 3.3(33.6) 1500 145 MS125C35 F61A8
Call or Email
