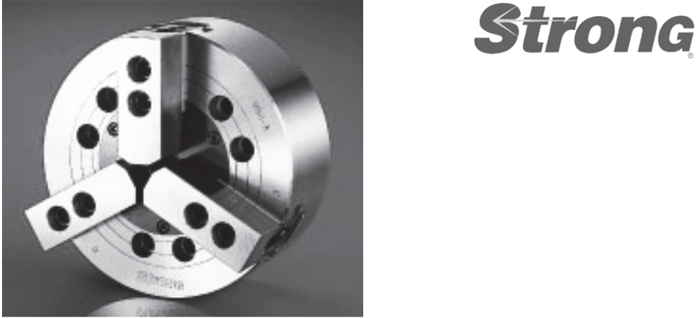

VA-200 Series 3 Jaw Closed Center Chucks
1.5mm x 60° Serrations Power Chucks
| Chuck Size | Chuck Model | Chuck Dia. | Mount | Part Number | Price Each | Chuck Cross Reference |
| 6” | V206 | 6.654” | Flatback | K-206-V-B | $1,026.00 | N06, HC-06 |
| A2-4 | K-206A05-V-B | $1,206.00 | ||||
| A2-5 | K-206A06-V-B | $1,206.00 | ||||
| 8” | V208 | 8.268” | Flatback | K-208-V-B | $1,345.50 | N08, HC-08 |
| A2-5 | K-208A05-V-B | $1,570.50 | ||||
| A2-6 | K-208A06-V-B | $1,570.50 | ||||
| 10” | V210 | 10.000” | Flatback | K-210A-V-B | $1,696.50 | N10, HC-10 |
| A2-6 | K-210A06-V-B | $2,016.00 | ||||
| A2-8 | K-210A08-V-B | $2,016.00 | ||||
| 12” | V212 | 11.969” | A2-6 | K-212A06-V-B | $2,808.00 | HC-12 |
| A2-8 | K-212A08-V-B | $2,808.00 | ||||
| 15” | V215 | 15.000” | A2-8 | K-215A08-V-B | $6,106.50 | - |
| A2-11 | K-215A11-V-B | $6,106.50 | ||||
| 18” | V218 | 17.717” | A2-8 | K-218A08-V-B | $8,239.50 | - |
| A2-11 | K-218A11-V-B | $8,239.50 |
| Model | Jaw Stroke (mm) | Plunger Stroke (mm) | Max. Pull Force (kgf) | Max. Gripping Force (kgf) | Max. Oper. Pressure (kgf/cm2) | Max. Speed | Weight (kg) | Moment of Inertia (kg?m2) | Matching Cylinder | Gripping O.D. Range (mm) |
| V-206 | 9.2 | 20 | 1835 | 5353 | 26.5 | 5200 | 12 | 0.045 | MS105C | Ø18~Ø165 |
| V-208 | 9.7 | 21 | 2549 | 7648 | 25.5 | 4500 | 23 | 0.137 | MS125C | Ø26~Ø210 |
| V-210 | 8.8 | 25 | 2957 | 11013 | 28.6 | 4000 | 34.5 | 0.3 | MS125C | Ø26~Ø254 |
| V-212 | 10.5 | 30 | 4181 | 15907 | 27.5 | 3300 | 59.5 | 0.725 | MS150C | Ø26~Ø304 |
| V-215 | 16 | 35 | 8362 | 25391 | 32.6 | 3000 | 101 | 1.8 | MS200C | Ø68~Ø381 |
| V-218 | 16 | 35 | 8362 | 25391 | 32.6 | 2700 | 116 | 2.9 | MS200C | Ø130~Ø450 |
| V-221 | 16 | 35 | 8362 | 27838 | 32.6 | 1940 | 181 | 6.2 | MS200C | Ø65~Ø530 |
| V-224 | 16 | 35 | 8362 | 27838 | 32.6 | 1760 | 216 | 7 | MS200C | Ø152~Ø610 |
| V-232 | 18.6 | 35 | 8362 | 27838 | 32.6 | 600 | 365 | 27.3 | MS200C | Ø100~Ø810 |
