N-200A Series Chucks - 3 Jaw

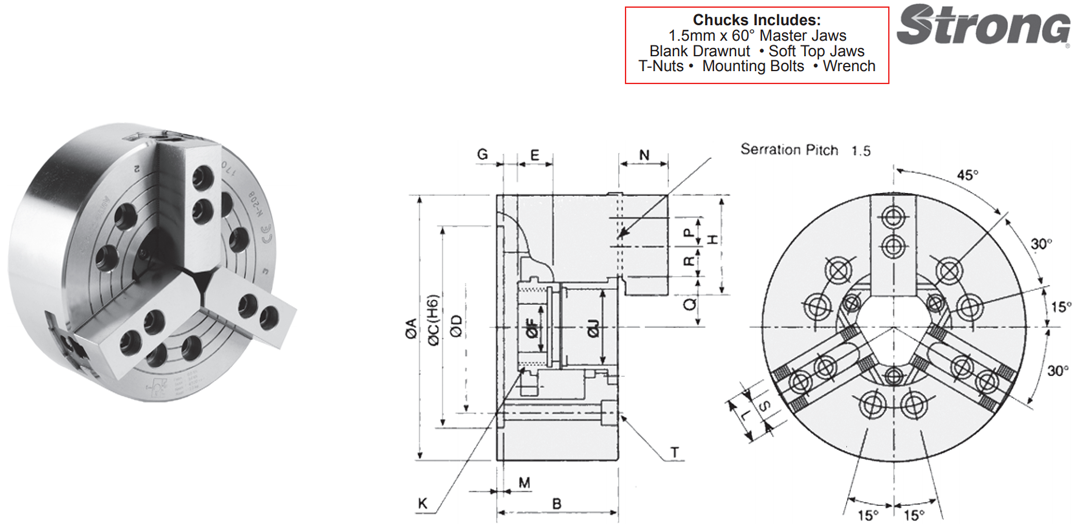

N-200A SERIES CHUCKS-3 JAW
1.5mm x 60° Serrations Power Chucks With Adaptor Plate
FEATURES:
  • Approx. 20% higher speed, higher gripping force and larger bore compared with usual chucks
  • Model N-200A chucks are assembled with adapter for ASA B5.9 type A spindles
  • Model N-200A chucks are manufactured from high grade alloy steel
  • All sliding surfaces are hardened and ground for accuracy and repeatability
  • Chucks include all mounting hardware
  • Additional charge for threaded drawnut
Chuck Size Chuck Model Chuck Dia. Thru-hole Dia. Mount Part Number Price Each Chuck Cross Reference
5” N205 5.315” 1.299” Flatback K-205-N-B
$1,487.50 B-205, HS-05
A2-4 K-205A04-N-B
$1,637.33
A2-5 K-205A05-N-B
$1,637.33
6” N206 6.654” 1.772” Flatback K-206-N-B
$1,487.50 B206, ATL6, HS-06
A2-4 K-206A04-N-B
$1,664.14
A2-5 K-206A05-N-B
$1,664.14
8” N208 8.268” 2.047” Flatback K-208-N-B
$1,683.00 B208, ATL8, HS-08
A2-5 K-208A05-N-B
$1,906.65
A2-6 K-208A06-N-B
$1,906.65
10” N210 10.000” 2.953” Flatback K-210A-N-B
$2,231.25 B210, ATL10, HS-10
A2-6 K-210A06-N-B
$2,503.20
A2-8 K-210A08-N-B
$2,503.20
12” N212 11.969” 3.585” A2-6 K-212A06-N-B
$3,364.20 B212, ATL12, HS-12
A2-8 K-212A08-N-B
$3,364.20
15” N215 15.000” 4.626” A2-8 K-215A08-N-B
$4,522.00 B15
A2-11 K-215A11-N-B
$4,522.00
18” N218 17.717” 4.626” A2-8 K-218A08-N-B
$6,552.85 B18
A2-11 K-218A11-N-B
$6,552.85
Specifications N205 N206 N208 N210 N212 N215 N218
Through-Hole (mm)
Plunger Stroke (mm)
Jaw Stroke (mm)
Max. Draw Bar Pull Force (kgf)
Max. Gripping Force (kgf)
kgf/cm2
Max. Speed (r.p.m.)
Ø33
10
5.4
1700
3600
29.6
7000
Ø45
12
5.5
2200
5700
28.5
6000
Ø52
16
7.4
3400
8800
26.5
4900
Ø75
19
8.8
4300
11000
27.5
4200
Ø91
23
10.6
5500
14300
27.5
3300
Ø117.5
23
10.6
7240
18355
23.5
2500
Ø117.5
23
10.6
7240
18355
23.5
2000
*Kitagawa is a registered trademark of Kitagawa NorthTech
