AF 50 Collets - 7/64" to 1/2" Range

Accu-Collets AF COLLETS
AF EXTENDED RANGE COLLETS
Interchangeable With Universal Acura-Flex® Extended Range (AF) Collets
Considered one of the most accurate collet styles available, AF collets are interchangeable with Universal Acura-Flex® style (AF) collets. Collets will collapse 1/64”.
  • Extended clamping range- .02” - .04”
  • 50% more gripping power than any other single taper collet available

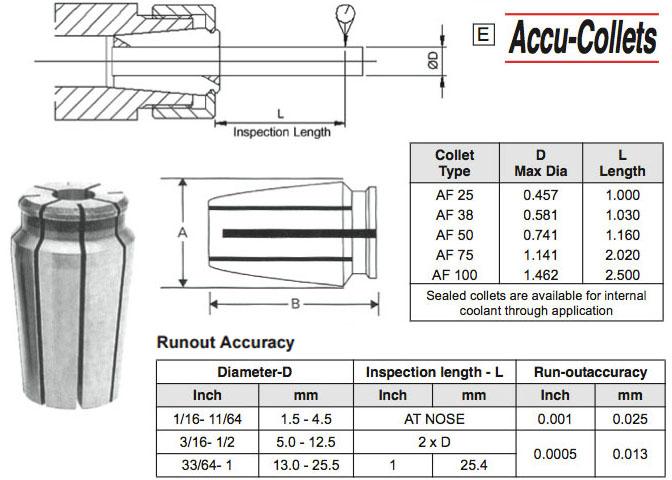

  • Collet sizes .172 thru 2.000 are guaranteed to .0005 T.I.R. at 2 times the tool diameter, or a maximum one inch from the face of the collet
  • Collet sizes .062 thru .172 are guaranteed .0010 T.I.R. at the nose
*Acura-Flex is a registered trademark of Universal Engineering
Size Dec. $22.83 Each Industry Ref. #
7/64 0.109 AF50-109-7/64
-
3mm 0.118 AF50-118-3.0
-
1/8 0.125 AF50-125-1/8
AF-55
3.5mm 0.138 AF50-138-3.5
-
9/64 0.140 AF50-140-9/64
AF-56
5/32 0.156 AF50-156-5/32
AF-57
4mm 0.157 AF50-157-4.0
-
11/64 0.171 AF50-171-11/64
AF-58
4.5mm 0.177 AF50-177-4.5
-
3/16 0.187 AF50-187-3/16
AF-59
5mm 0.196 AF50-196-5.0
AF-60
13/64 0.203 AF50-203-13/64
AF-61
5.5mm 0.217 AF50-217-5.5
-
7/32 0.218 AF50-218-7/32
AF-62
15/64 0.234 AF50-234-15/64
AF-63
6mm 0.236 AF50-236-6.0
-

Size Dec. $14.57 Each Industry Ref. #
1/4 0.250 AF50-250-1/4
AF-64
6.5mm 0.256 AF50-256-6.5
-
17/64 0.265 AF50-265-17/64
AF-65
7mm 0.275 AF50-275-7.0
AF-66
9/32 0.281 AF50-281-9/32
AF-67
7.5mm 0.295 AF50-295-7.5
-
19/64 0.296 AF50-296-19/64
AF-68
5/16 0.312 AF50-312-5/16
AF-69
8mm 0.315 AF50-315-8.0
-
21/64 0.328 AF50-328-21/64
AF-70
8.5mm 0.334 AF50-334-8.5
-
11/32 0.343 AF50-343-11/32
AF-71
9mm 0.354 AF50-354-9.0
AF-72
23/64 0.359 AF50-359-23/64
AF-73
9.5mm 0.374 AF50-374-9.5
-
3/8 0.375 AF50-375-3/8
AF-74
25/64 0.390 AF50-390-25/64
AF-75
10mm 0.393 AF50-393-10.0
-
13/32 0.406 AF50-406-13/32
AF-76
10.5mm 0.413 AF50-413-10.5
-
27/64 0.421 AF50-421-27/64
AF-77
11mm 0.433 AF50-433-11.0
-
7/16 0.437 AF50-437-7/16
AF-78
11.5mm 0.452 AF50-452-11.5
-
29/64 0.453 AF50-453-29/64
AF-79
15/32 0.468 AF50-468-15/32
AF-80
12mm 0.472 AF50-472-12.0
-
31/64 0.484 AF50-484-31/64
AF-81
12.5mm 0.492 AF50-492-12.5
-
1/2 0.500 AF50-500-1/2
AF-82

Size Dec. $433.75 Each Industry Ref. #
AF 50 Set (26pc) AF50-SET26
-
