HARD JAWS - ACME SERRATED KEY TYPE

ACME KEY SERRATED
HARD JAWS
  • Designed for first operation roughing, expect standard runout between 0.005-0.010
  • Reversible-suitable for OD & ID workholding.

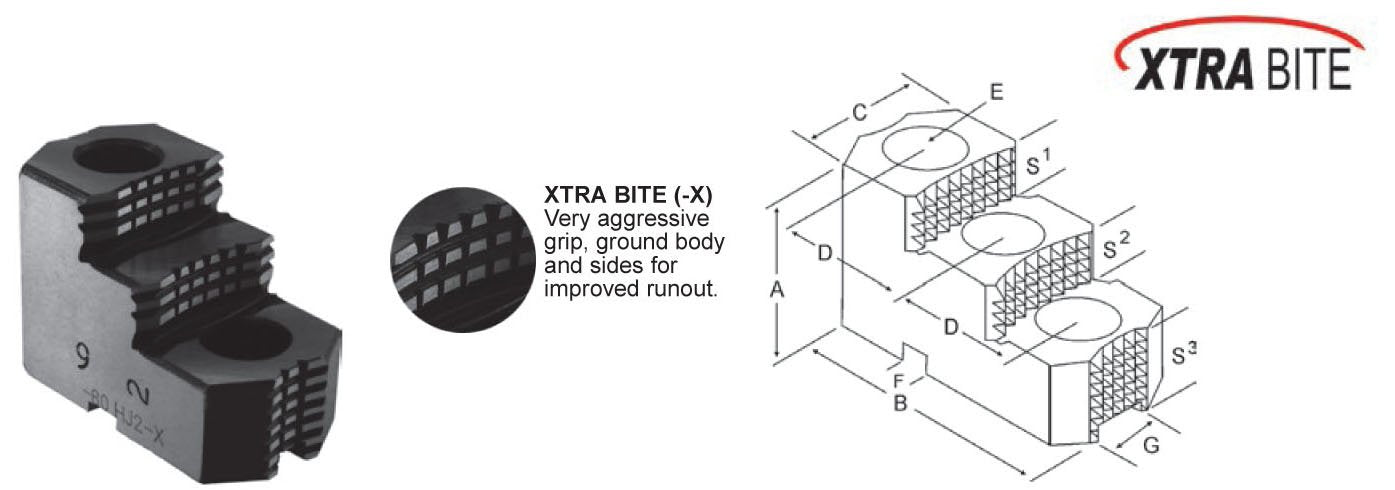

  • XTRA BITE (-X) -very aggressive bite. Has conical teeth for extra gripping power and ground body to provide improved runout.
Prices are pulled from our database in real time. Press Add button to see product price.
Critical Dimensions
GROUP Chuck Size Groove Width
G
Tongue Width
F
Screw Size
E
Hole Space
D
Tap
Hole
Width Inch
C
OAL Inch
B
Height Inch
A
No.
of
Holes
No.
of
Steps
Top
Step Ht
S1
Mid
Step Ht
S2
Bot
Step Ht
S3
Part
Number
AI-07-1/2-17 10 0.750 1.031 1/2 1.750 5/16-18 1.750 4.250 2.480 2 2 0.600 0.600 1.280 AC-100HJ2-X
AI-08-5/8-20 12 0.875 1.031 5/8 2.000 5/16-18 1.750 4.875 2.469 2 2 0.550 0.550 1.369 AC-120HJ2-X
AI-10-3/4-25 15 & UP 1.000 1.531 3/4 2.500 3/8-16 2.500 5.500 3.469 2 2 0.950 0.950 1.569 AC-150HJ2-X
