SOFT JAWS POINTED - 3/32" x 90° Serrations

FOR USE ON: SMW Autoblok, Forkardt, Rohm, Pratt Burnerd & Other Chucks
  • 3/32" x 90° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum & Steel
Prices are pulled from our database in real time. Press Add button to see product price.

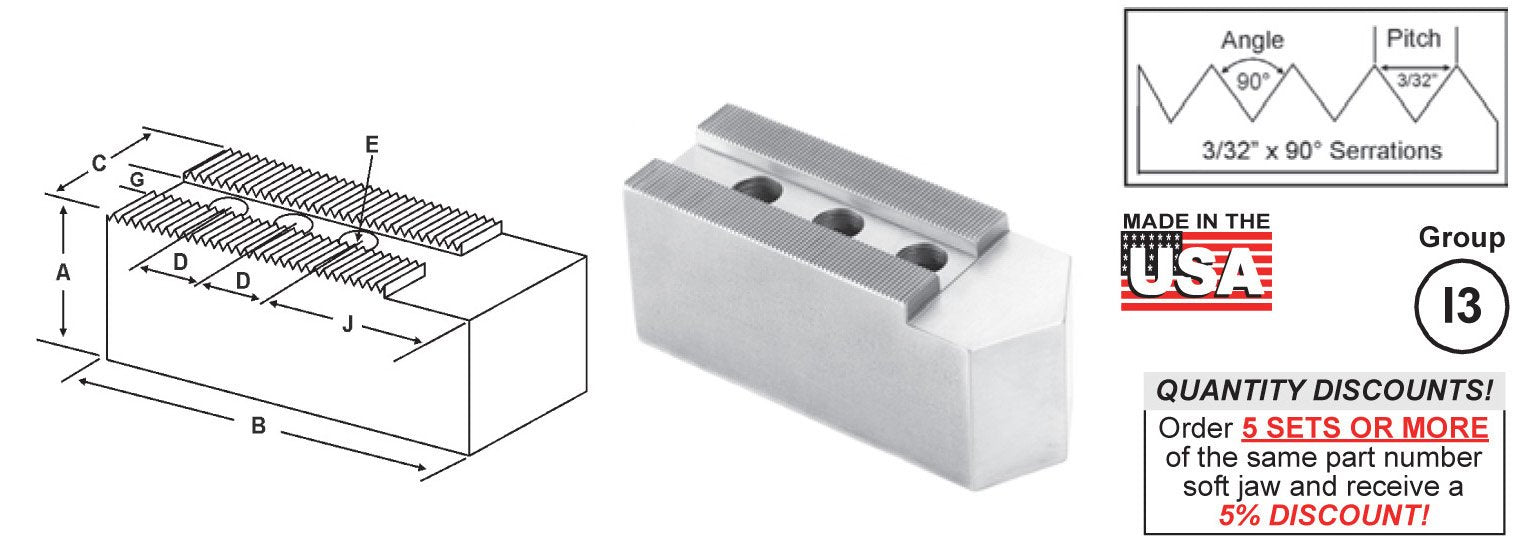

Critical Dimensions ALUMINUM STEEL
Group
No		 Groove Width
G		 Screw
Size
E		 Hole
Space
D		 Height
Inch
A		 Hole to Front
J		 Width Inch
C		 Length Inch
B		 No.
of
Holes		 POINTED END
Part
Number		 POINTED END
Part
Number
I3-100-138 1.004 (25.5mm) 20mm 1.380 (35mm) 2.50 3.500 2.50 6.50 2 FK-16250AP
FK-16250P
ROHM
KFD 400-
500-630		 2.50 3.500 2.50 8.00 3 FK-16251AP
FK-16251P
4.00 3.500 2.50 6.50 2 FK-16400AP
FK-16400P
4.00 3.500 2.50 8.00 3 FK-16401AP
FK-16401P
I3-100-156 1.000 (25.5mm) 3/4 1.562 (39.5mm) 3.00 3.250 2.50 6.50 2 SM-16300AP
SM-16300P
SMW
Autoblok
ALD-400,
BB 500-ES,
BB 630-ES		 3.00 3.750 2.50 8.00 3 SM-16301AP
SM-16301P
4.00 3.250 2.50 6.50 2 SM-16400AP
SM-16400P
5.00 3.250 2.50 6.50 2 SM-16500AP
SM-16500P
5.00 3.750 2.50 8.00 3 SM-16501AP
SM-16501P
I3-100-175 1.000 (25.5mm) 3/4 1.750 (44.5mm) 3.50 7.460 2.50 10.00 2 FK-25350AP*
FK-25350P*
5.00 7.460 2.50 10.00 2 FK-25500AP*
FK-25500P*
I3-110-162 1.102 (28mm) 3/4 1.625 (41.5mm) 3.00 3.630 3.50 6.75 2 SM-20300AP*
SM-20300P*
3.00 5.880 3.50 9.00 2 SM-20307AP*
SM-20307P*
5.00 3.630 3.50 6.75 2 SM-20500AP*
SM-20500P*
5.00 5.880 3.50 9.00 2 SM-20507AP*
SM-20507P*
I3-118-250 1.181 (30mm) 1.00 2.500 (63.5mm) 3.00 4.250 3.50 8.00 2 SM-24300AP
SM-24300P
5.00 4.250 3.50 8.00 2 SM-24500AP
SM-24500P
3.00 7.000 3.50 11.00 2 SM-24301AP
SM-24301P
5.00 7.000 3.50 11.00 2 SM-24501AP
SM-24501P
I3-118-275 1.181 (30mm) 1.00 2.750 (70mm) 3.50 4.500 3.50 10.00 2 SM-40350AP*
SM-40350P*
5.00 4.500 3.50 10.00 2 SM-40500AP*
SM-40500P*
