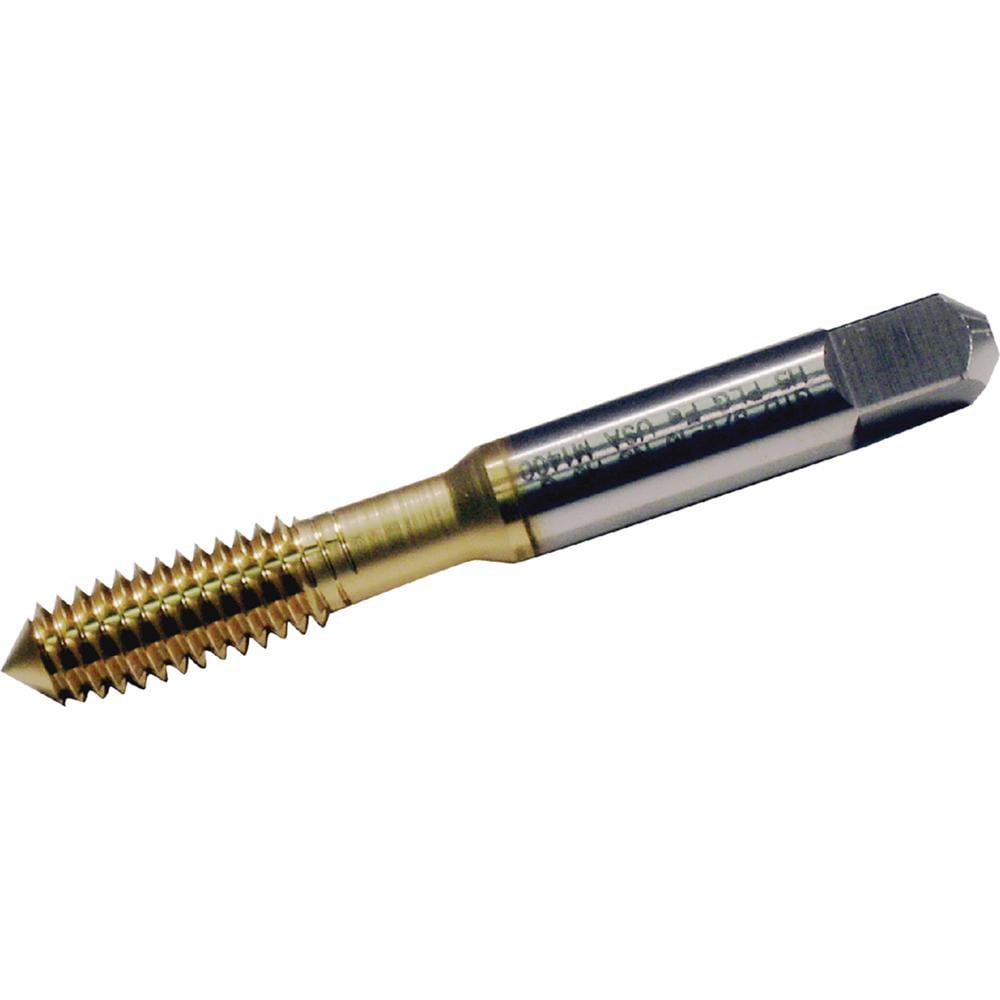

Brand: Widia / Part #: 2747090
Item #: 98854037
Brand: Widia
Model #: 2747090
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Overall Length (mm) | 85.8500 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D11 |
| Thread Pitch (mm) | 1.75 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 23.83 |
| Thread Depth (mm) | 23.83 |
| Thread Depth | 23.8300 |
| Shank Diameter (mm) | 9.3200 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5912 |
| Tap Type | Blind |
| Tapping Depth (mm) | 23.83 |
| Shank Length (mm) | 62.020 |
| Threads per Inch | 15 |
| Class Of Fit | 6H |
| Coolant Through | No |
