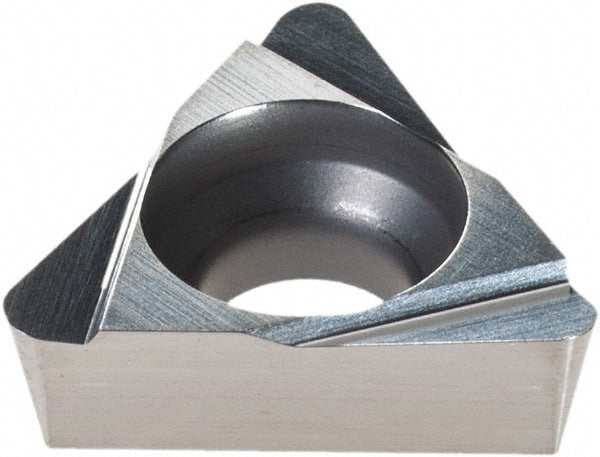

Brand: Iscar / Part #: 5505503
Item #: 05560560
Brand: Iscar
Model #: 5505503
Product Specifications
| Insert Style | TPGX |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | IC20 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Material | Solid Carbide |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.51 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | Isoturn |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4330 |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | S; H; K; M; N |
| Iso Code | TPGX 222-L |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | TPGX 222-L |
| Cutting Direction | Left Hand |
| Chip Breaker | L |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring |
