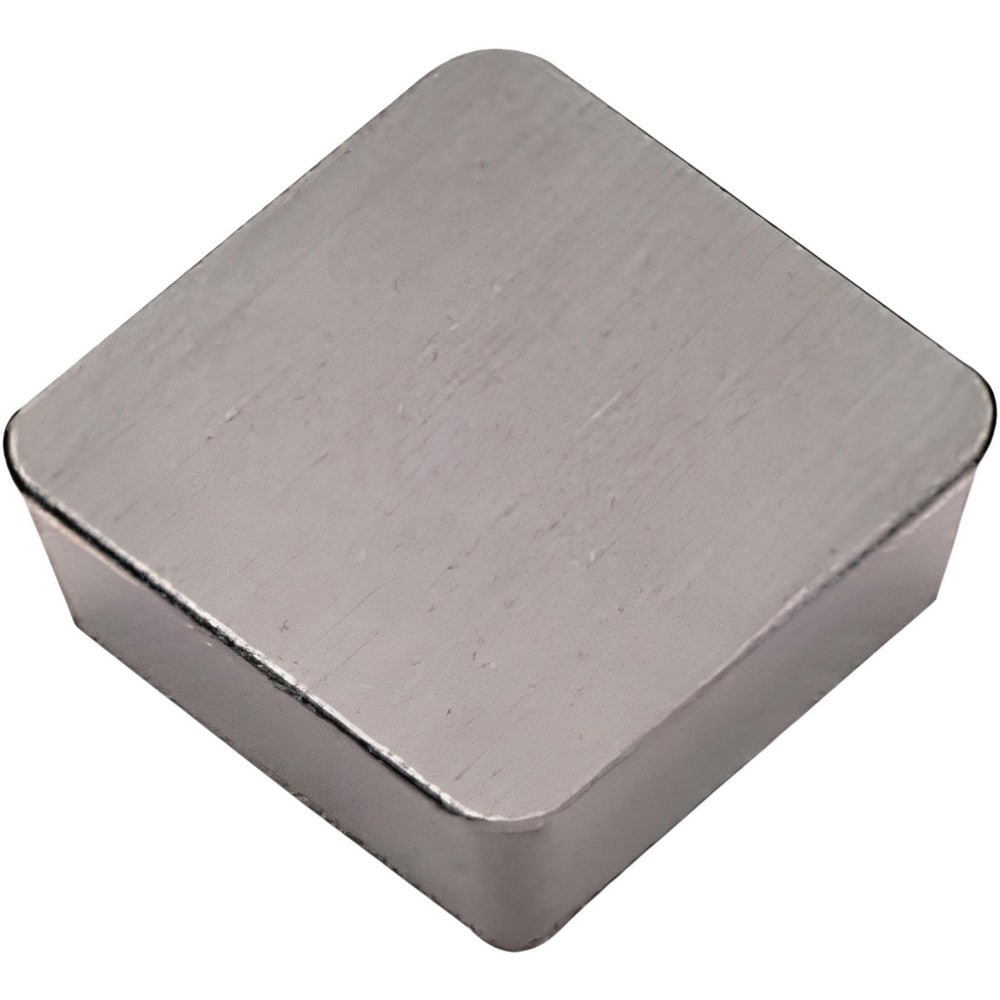

Brand: Ingersoll Cutting Tools / Part #: 5613747
Item #: 98888225
Brand: Ingersoll Cutting Tools
Model #: 5613747
Product Specifications
| Insert Style | SPG |
| Insert Shape Code | S |
| Insert Size Code | 432 |
| Insert Shape | Square |
| Coating/Finish | TiN; TiAlN |
| Manufacturer Grade | TT7080 |
| Corner Radius (Inch) | 1/32 |
| Insert Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 90.00 |
| Relief Angle | 11.000 |
| Series | SPG |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Inch) | 1/2 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | SPG432 |
| Iso Code | SPGN120408 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | None |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Style | SPG |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning |
