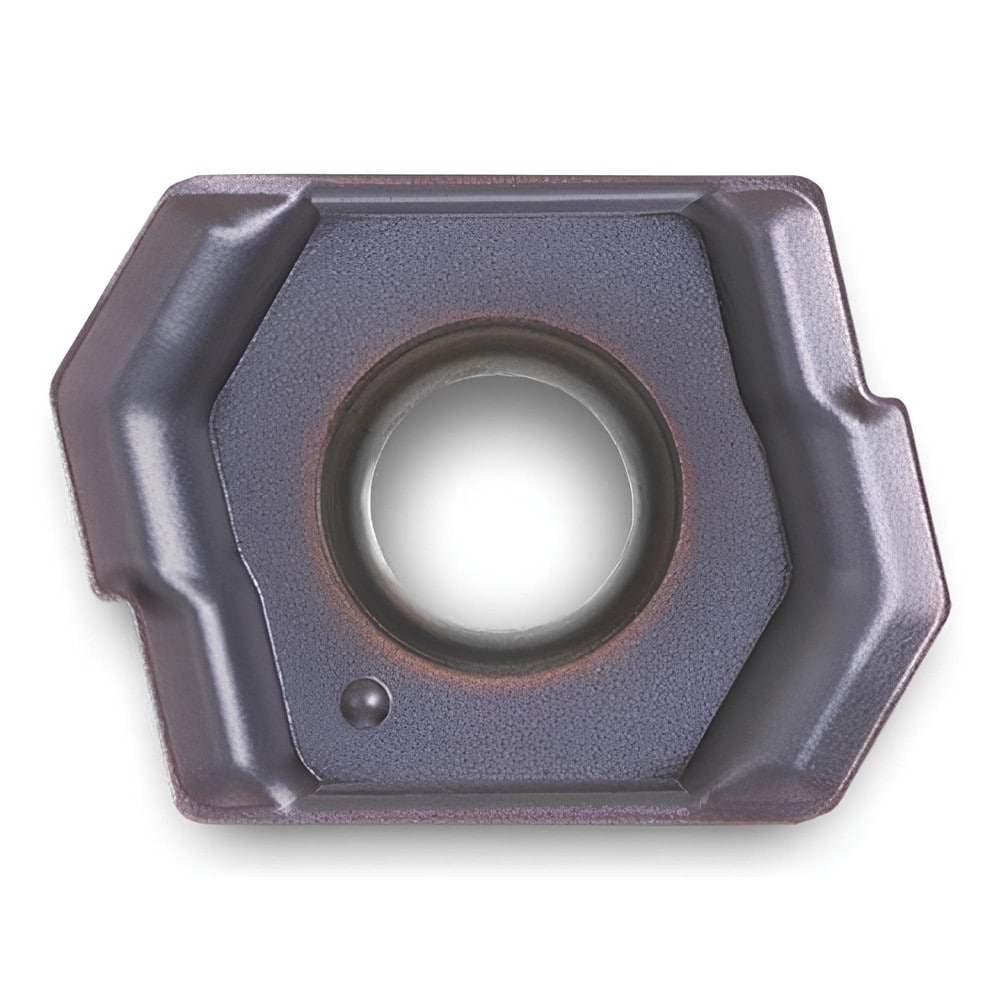

Brand: Ingersoll Cutting Tools / Part #: 4800301
Item #: 95150421
Brand: Ingersoll Cutting Tools
Model #: 4800301
Product Specifications
| Insert Style | LPHT |
| Insert Size Code | 060204 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2005 |
| Thickness (Inch) | 5/64 |
| Inscribed Circle (Decimal Inch) | 0.2780 |
| Inscribed Circle (mm) | 7.06 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/64 |
| Chipbreaker | DT |
| Series | LPHT |
| Coating Process | PVD |
| Shape | Parallelogram |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | LPHT060204R-DT IN2005 |
| Drill Style | MC; TRH; GD |
| Insert Size | 06 |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0780 |
| Coating/Finish | TiAlN |
