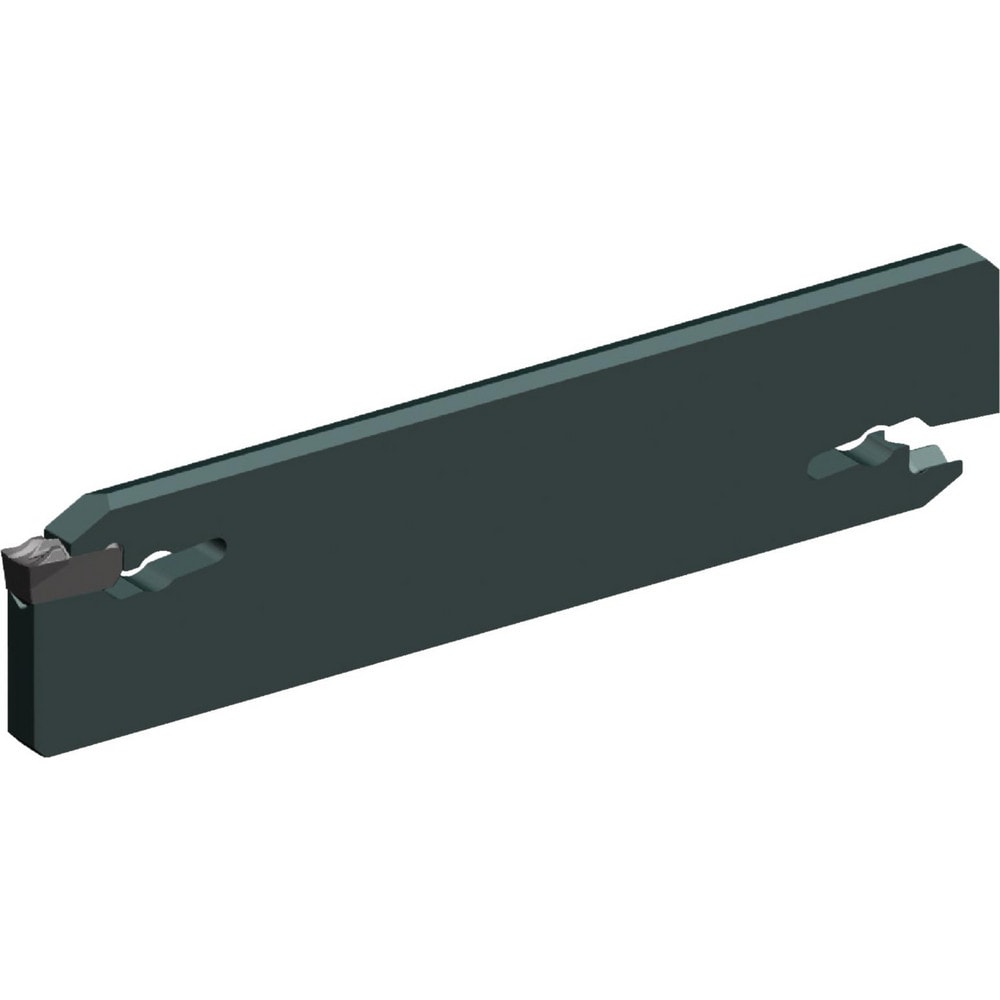

Brand: Widia / Part #: 6499217
Item #: 32900474
Brand: Widia
Model #: 6499217
Product Specifications
| End Type | Double-Ended |
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Height (mm) | 31.98 |
| Blade Height (Decimal Inch) | 1.2589 |
| Blade Width (Decimal Inch) | 0.1339 |
| Blade Width (mm) | 3.40 |
| Blade Overall Length (Decimal Inch) | 5.9154 |
| Blade Overall Length (mm) | 150.25 |
| Blade Style | WGC |
| Compatible Insert Style | WGC |
| Compatible Insert Size Code | 4 |
| Tool Material | Steel |
| Insert Holding Method | Spring Clamp |
| Maximum Workpiece Diameter (mm) | 100.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9372 |
| Series | WGC |
| Insert Style | WGC |
| Cutting Tool Application | Grooving; Cut-Off |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 4 |
| Maximum Depth of Cut (Decimal Inch) | 1.9686 |
| Maximum Depth of Cut (mm) | 50.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Cutting Height (mm) | 25.05 |
| Cutting Height (Decimal Inch) | 0.9862 |
| Minimum Insert Width (Decimal Inch) | 0.1575 |
| Minimum Insert Width (mm) | 4.00 |
| Maximum Insert Width (mm) | 4.99 |
| Maximum Insert Width (Decimal Inch) | 0.1965 |
| Manufacturers Catalog Number | WGCBSN32M0450 |
