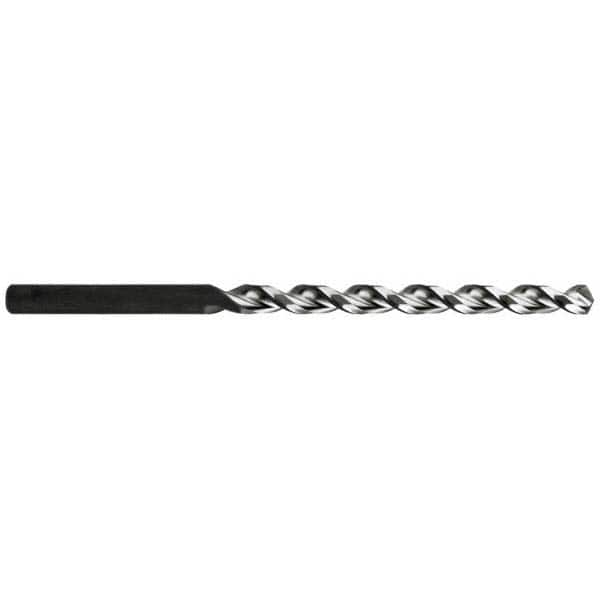

Walter-Titex - #58 130° Parabolic Flute High Speed Steel Taper Length Drill Bit
Item #: 01466580
Brand: Walter-Titex
Model #: 5154105
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #58 |
| Drill Bit Size (Decimal Inch) | 0.0420 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Standard |
| Flute Length (Inch) | 1-15/32 |
| Overall Length (Inch) | 2-3/8 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.014 to 0.000 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.00055 to 0.00000 |
| Web Thinning | Web-Thinned |
| Specification Number | BS 328; DIN 340 |
| Series/List | A1522 |
