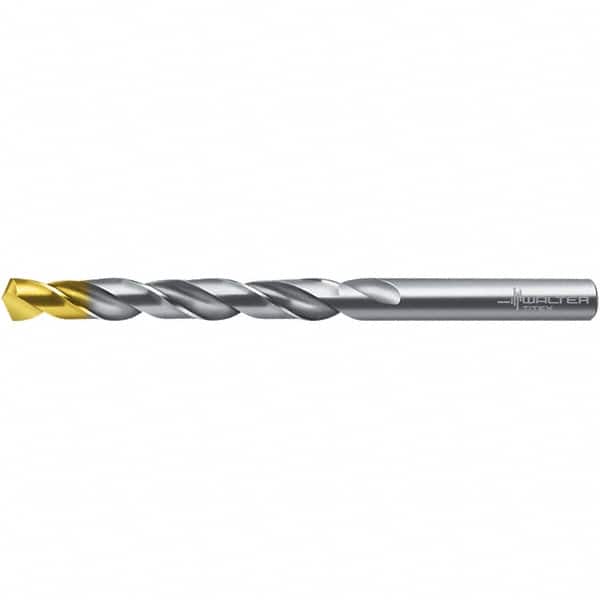

Walter-Titex - 6mm 118° Spiral Flute High Speed Steel Taper Length Drill Bit
Item #: 99658288
Brand: Walter-Titex
Model #: 7506475
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Flute Length (mm) | 57.00 |
| Overall Length (mm) | 93.00 |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 8xD |
| Shank Length (mm) | 48 |
| Drill Point Length (mm) | 1.80 |
| Material Grade | WZ90AJ |
| Series/List | DA110 |
